| FWDM-1613-XX |
 |
|
|
|
|
主要特點 |
|
1.25Gb/s,1470~1610nm DFB/APD,
SMF LC 100km,0~70℃,3.3V
|
|
|
|
| 產品說明 |
|
|
|

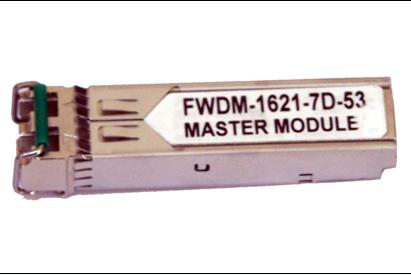

FWDM-1613-XXXX系列CWDM光纖模塊是小型可插拔千兆以太網1000BASE光纖數據通信SFP模塊，完全符合1000BASE-ZX和光纖通道1x SM-LC-L FC-PI規範，正是本著SFP結構，支持熱插拔功能。該模塊是專為CWDM系統使用而設計的，有18個波段，其中心波長從1270 nm至1610 nm，每個波段遞增20 nm；提供最低30 dB光鏈路預算。
發射器部分採用粗波分複用多量子阱DFB激光器，是Class1的激光按照符合國際安全標準IEC - 60825。接收器部分採用APD-TIA探測器和後置限幅放大器集成電路。
產品特點
1）數據傳輸速率可高達1.25Gbps
2）18個CWDM波段，激光器發射波長1270 nm至1610 nm，每個波段各遞增20 nm
3）提供最低30dB光鏈路預算
4）單3.3V電源和TTL邏輯接口
5）雙LC接頭
6）可熱插拔
7）工作溫度
標準：0〜+70
工業：-40〜+85
8）符合MSA SFP規範
9）內置數字診斷監測接口
10）兼容的SFF – 8472規範
產品應用
1）千兆以太網交換機和路由器
2）光纖通道交換機設備
3）xDSL的應用
4）Metro通信系統
CWDM 波長
|
band |
Nomenclature |
Wavelength(nm) |
|
Min. |
Typ. |
Max. |
|
O-band Original |
A |
1264 |
1270 |
1277.5 |
|
B |
1284 |
1290 |
1297.5 |
|
C |
1304 |
1310 |
1317.5 |
|
D |
1324 |
1330 |
1337.5 |
|
E |
1344 |
1350 |
1357.5 |
|
E-band Extended |
F |
1364 |
1370 |
1377.5 |
|
G |
1384 |
1390 |
1397.5 |
|
H |
1404 |
1410 |
1417.5 |
|
I |
1424 |
1430 |
1437.5 |
|
J |
1444 |
1450 |
1457.5 |
|
S-band Short
Wavelength |
K |
1464 |
1470 |
1477.5 |
|
L |
1484 |
1490 |
1497.5 |
|
M |
1504 |
1510 |
1517.5 |
|
N |
1524 |
1530 |
1537.5 |
|
C-band Conventional |
O |
1544 |
1550 |
1557.5 |
|
L-band
Long Wavelength |
P |
1564 |
1570 |
1577.5 |
|
Q |
1584 |
1590 |
1597.5 |
|
R |
1604 |
1610 |
1617.5 |
CWDM*: 18 Wavelengths from 1270 nm to 1610 nm, each step 20 nm.
技術參數
|
參數 |
符號 |
最小 |
典型 |
最大 |
單位 |
|
Data Rate |
|
|
1.25 |
|
Gbps |
|
發射部分 |
|
Centre Wavelength |
|
c–5.5 |
c |
c+7.5 |
nm |
|
Spectral Width (-20dB) |
|
|
|
1 |
nm |
|
|
|
Average Output Power |
P0ut |
0 |
|
+5 |
dBm |
|
Extinction Ratio |
EX |
10 |
|
|
dB |
|
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
Rise/Fall Time(20% 80%) |
tr/tf |
|
|
2 |
ns |
|
Output Optical Eye |
IUT-T G.957 Compliant |
|
Data Input Swing Differential |
VIN |
500 |
|
2000 |
mV |
|
Input Differential Impedance |
ZIN |
90 |
100 |
110 |
|
|
TX Disable |
Disable |
|
2.0 |
|
Vcc+0.3 |
V |
|
Enable |
0 |
|
0.8 |
|
TX_Fault |
Fault |
|
2.0 |
|
VCC+0.3 |
V |
|
Normal |
0 |
|
0.8 |
|
TX_Disable Assert Time |
t_off |
|
|
10 |
us |
|
接收部分 |
|
Centre Wavelength |
C |
1100 |
|
1600 |
nm |
|
Receiver Sensitivity |
PIN |
|
|
-32 |
dBm |
|
Output Differential Impedance |
PIN |
90 |
100 |
110 |
|
|
Data Output Swing Differential |
VOUT |
370 |
|
2000 |
mV |
|
Rise/Fall Time |
Tr/tf |
|
|
2.2 |
ns |
|
LOS D<, SPAN, style="LETTER-SPACING: 0.05pt">e-Assert |
LOSD |
|
|
-33 |
dBm |
|
LOS Assert |
LOSA |
-40 |
|
|
dBm |
|
LOS |
High |
|
2.0 |
|
VCC+0.3 |
V |
|
Low |
|
0 |
|
0.8 |
訂購信息
|
Part Number |
Description |
|
FWDM-1613-1470[D] |
1.25Gb/s,1470nm DFB/APD,SMF LC Gray,0~70℃,3.3V [D- with DDM] |
|
FWDM-1613-1490[D] |
1.25Gb/s,1490nm DFB/APDSMF LC Violet,0~70℃,3.3V [D- with DDM] |
|
FWDM-1613-1510[D] |
1.25Gb/s,1510nm DFB/APD,SMF LC Blue,0~70℃,3.3V [D- with DDM] |
|
FWDM-1613-1530[D] |
1.25Gb/s,1530nm DFB/APD,SMF LC Green,0~70℃,3.3V [D- with DDM] |
|
FWDM-1613-1550[D] |
1.25Gb/s,1550nm DFB/APD,SMF LC Yellow,0~70℃,3.3V [D- with DDM] |
|
FWDM-1613-1570[D] |
1.25Gb/s,1570nm DFB/APD,SMF LC Orange,0~70℃,3.3V [D- with DDM] |
|
FWDM-1613-1590[D] |
1.25Gb/s,1590nm DFB/APD,SMF LC Red,0~70℃,3.3V [D- with DDM] |
|
FWDM-1613-1610[D] |
1.25Gb/s,1610nm DFB/APD,SMF LC Brown,0~70℃,3.3V [D- with DDM] |
|
| Part Number |
Package |
Application |
Com-MFR |
Comp-P/N |
Parameters |
| FWDM-1613-XX |
SFP CWDM |
GEb,FC,SDH/SONET |
null |
null |
1.25Gb/s,1470~1610nmDFB/APD,SMF LC 80km |
|
|
