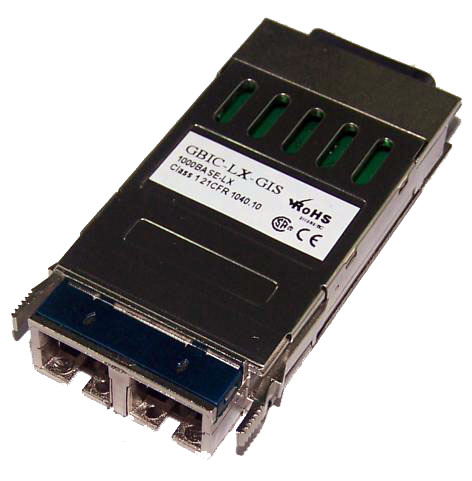

Plexda的GBIC光纖收發模塊是一種可支持熱插拔的模塊。它允許通過GBIC接口插槽與銅線網絡連接實現光纖數據傳輸的轉換。這種設備是經濟的、省時的，提供了靈活性和消除了客戶需要更改或升級光纖連接時要整個設備更換的必要性。
雙SC光纖連接頭，符合IEEE-802.3z千兆以太網標準，速率可達1.25Gbps。符合Bellcore TA-NWT- 000983規範。所有這些都是不銹鋼外殼封裝，具有高可靠性和穩定性。
產品特點
•傳輸速率可高達1.25Gb/s
•SLG1850-XX 850nm VCSEL激光發射器
SLG1310-XX 1310nm FP激光發射器
SLG1410-XX 1550nm DFB激光發射器
SLG1510-XX 1550nm DFB激光發射器
•雙SC連接頭
•符合802.3z標準1000BASE-SX，1000BASE-LX或1000BASE-ZX標准
•可熱插拔（符合GBIC Rev 5.5規範）
•TTL邏輯接口
•可選的數字診斷功能
•全金屬外殼設計，低EMI
•即插即用模塊
•1類激光產品
產品規格
|
Fiber Optic transceiver Specs |
|
Multimode
SLG1850-XX |
Min TX PWR: -10.0 dBm
Max TX PWR: -4.0 dBm
RX Sensitivity: -17.0 dBm
Max In PWR: 0.0 dBm
Link Distance: 550m |
|
Single Mode |
|
SLG1310-XX |
Min TX PWR: -10.0 dBm
Max TX PWR: -3.0 dBm
RX Sensitivity: -22.0 dBm
Max In PWR: 0 dBm
Link Distance: 15km |
|
SLG1410-XX |
Min TX PWR: -3.0 dBm
Max TX PWR: 0.0 dBm
RX Sensitivity: -22.0 dBm
Max In PWR: 0 dBm
Link Distance: 50km |
|
SLG1510-XX |
Min TX PWR: 0 dBm
Max TX PWR: +5.0 dBm
RX Sensitivity: -24.0 dBm
Max In PWR: 0 dBm
Link Distance: 80km |
|
*SLGT00-XX |
1000BASE-T
RJ45 Category 5
Link Distance: 100m |
|
Dimensions |
Width: 1.2" [30 mm]
Depth: 2.6" [65 mm]
Height: 0.40" [10 mm] |
|
Power |
3~5V, no external power required |
|
Power Consumption |
0.8 watts |
|
Environment |
0°C~70°C |
|
Warranty |
Lifetime |
產品應用:
1）千兆以太網連接
2）光纖通道連接在1.06Gbps
3）高速I/O文件服務器
4）交換機連接
訂購信息:
|
Product Number |
Description |
|
1) SLG1850-XX |
1000BASE-SX 850nm multimode (SC) [MMF 550m] |
|
2) SLG1310-XX |
1000BASE-LX 1310nm single mode (SC) [SMF 10 km] |
|
4) SLG1410-XX |
1000BASE-EX 1550nm single mode (SC) [SMF 50km] |
|
5) SLG1510-XX |
1000BASE-ZX 1550nm single mode (SC) [SMF 80km] |
|
5) SLGT00-XX |
1000BASE-T Category 5 (RJ45) [100m] |
|
工業以太網光纖收發器
