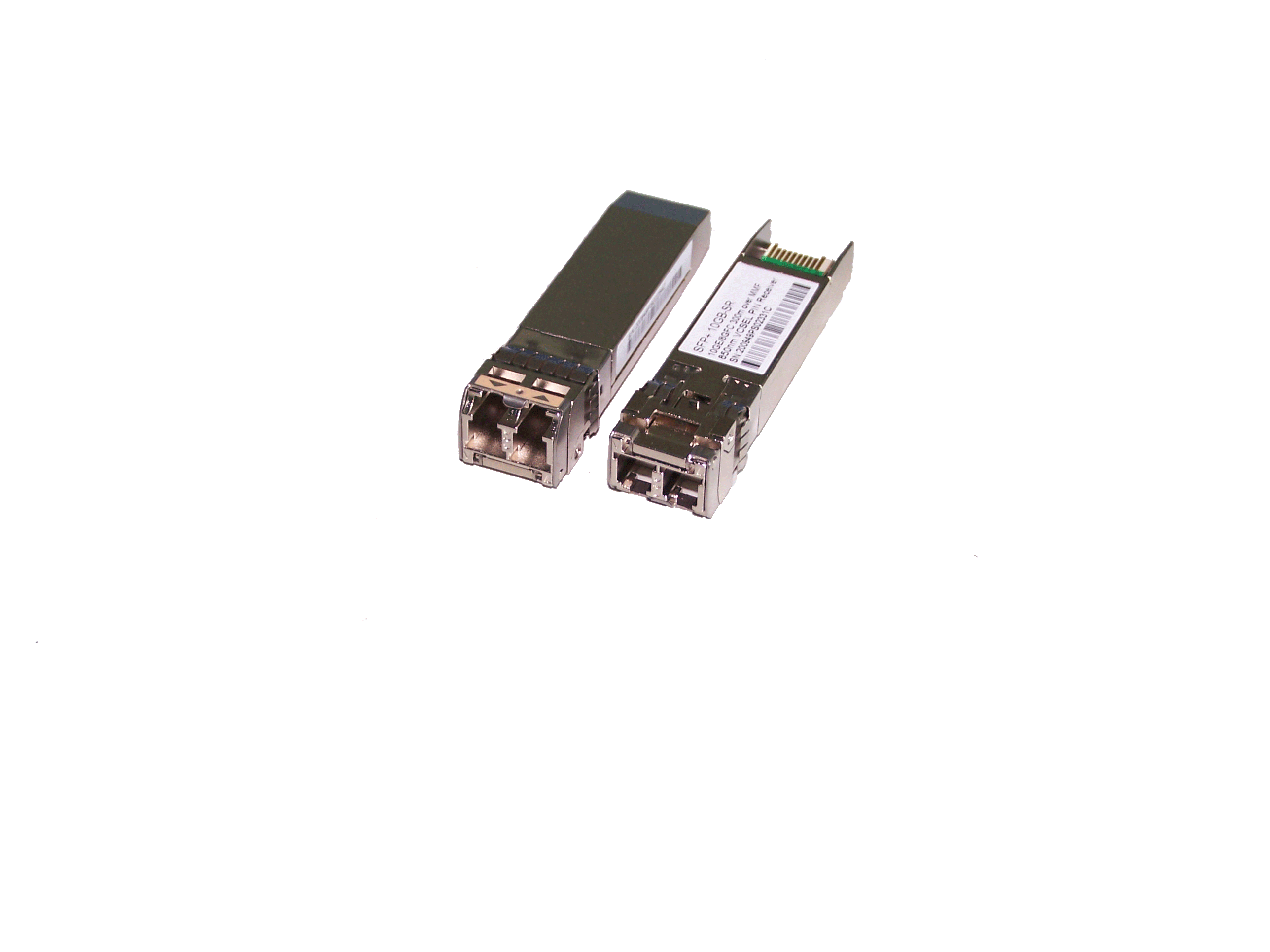

| SFP-10GB-SR |
 |
|
|
|
|
主要特點 |
|
SFP+,upto 10.3Gbps
850nm MMF,LC 300m
Compatible Cisco SFP-10GB-SR SFP+
|
|
|
|
| 產品說明 |
|
|
|
產品特點：
1） 支持GE和10GE的應用
SFP-10GB-SR 850nm的VCSEL和PIN接收器
SFP-10GB-LR 1310nm DFB和PIN接收器
2）SFI高速電接口
3）集成數字診斷監測功能可選
4）SFP+ MSA封裝，雙 LC連接頭
5）+3.3 V單電源
6）功耗小於 1.0W
7）工作溫度：0〜+70℃
兼容標准
|
Feature |
Standard |
Performance |
|
Electrostatic Discharge
(ESD) to the Electrical Pins |
MIL-STD-883E
Method 3015.7 |
Class 1(>1000V for SFI pins, >2000V for other pins.) |
|
Electrostatic Discharge (ESD) to the Duplex LC Receptacle |
IEC 61000-4-2
GR-1089-CORE |
Compatible with standards |
|
Electromagnetic
Interference (EMI) |
FCC Part 15 Class B
EN55022 Class B (CISPR 22B)
VCCI Class B |
Compatible with standards |
|
Immunity |
IEC 61000-4-3 |
Compatible with standards |
|
Laser Eye Safety |
FDA 21CFR 1040.10 and 1040.11
EN60950, EN (IEC) 60825-1,2 |
Compatible with Class I laser product. |
產品規格:
|
SFP-10GB-SR |
Package: SFP+
Date Rate: 10.3Gbps
Wavelength: 850nm
TX optic Power: -7.3~-1.5dBm
RX sensitivity: <-9.9dBm
Operate Temp: 0~70℃
VCSEL and PIN, 3.3V MMF LC
Reach: 300m |
|
SFP-10GB-LR |
Package: SFP+
Date Rate: 10.3Gbps
Wavelength: 1310nm
TX optic Power: -8~0.5dBm
RX sensitivity: <-12.6dBm
Operate Temp: 0~70℃
DFB and PIN, 3.3V SMF LC
Reach: 10km |
|
SFP-10GB-LR20 |
Package: SFP+
Date Rate: 10.3Gbps
Wavelength: 1310nm
TX optic Power: -3~+1.0dBm
RX sensitivity: <-14dBm
Operate Temp: 0~70℃
DFB and PIN, 3.3V SMF LC
Reach: 20km |
|
| Part Number |
Package |
Application |
Com-MFR |
Comp-P/N |
Parameters |
| SFP-10GB-SR |
SFP+ |
10GEth,SR/SW |
Cisco |
SFP-10GB-SR |
10.3Gb/s,850nmVCSEL/PIN,MMF LC 300m,0~70℃,3.3V |
|
|
