FMC-GEx14 series
Ethernet Media Converter
The FMC-GEx14 series Media Converter complies with IEEE802.3z,IEEE802.3AB Standards. It is designed to convert data signal between 10/100/1000 Base-T and 1000Base-SX/LX/ZX Gigabit Ethernet. It supports 10/100/1000Base-T and 1000Base-SX/LX/ZX applications. The data signal converted by such high performance media converter can be transmitted up to 120Km maximum by fiber-optical cable.

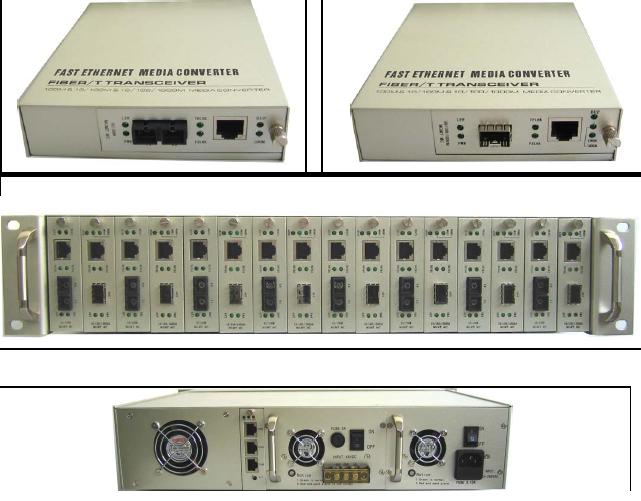

The Converter is equipped with two fiber optic connectors (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jacks and one external power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.
It is compact, cost-effective, low dissipative, high reliable and stable. It can be used in standalone applications, or Rack-Mounted applications where multiple media converter can be inserted into a rack-mount chassis (Up 16 units), and allowing complete function management, it support protocols like
SNMP, WEB, TELNET, CONSOLE and offering MIB database for convenient to be merged to the party’s
SNMP, and realizes the integrated management to all chassis.
Features:
Hardware
1). Support the IEEE802.3 fast Ethernet standard (10Mbps)
2). Support the IEEE802.3u Fast Ethernet standard(100Mbps)
3). Support the IEEE802.3ab,IEEE802.3z Gigabit Ethernet standard (1000Mbps)
4). Support the IEEE802.3x full-duplexes flow control
5). Support the IEEE802.1d spanning tree protocol
6). Support the IEEE802.1Q VLAN remark protocol
7). Full-duplexes, half-duplex auto negotiation
8). 10M/100M/1000M bit rate auto negotiation
9)Ext. Power or Int. Power for option, AC and DC input for option
10). Built in high efficiency SRAM for packet buffer, with 1K-entry lookup table and 4-way associative hash algorithm.
11). Half duplex: back pressure flow control
Full duplex: IEEE802.3x flow control
12). Automatic identification of MDI/MDI-X cross line.
13). Max.2046bytes packet at store-and-forward mode, Max.9K bytes packet at cut-through mode
14). low power consumption, low heat, standalone type with 10W special communication power supply
15). Support LFP function.
16). In conformity to safety code of FCC and 15 CLASS A and CE MARK.
17) With high performance auto-sensing exchanging chipset meeting industrial standard,
secure and steady data transmission is ensured with non-traffic jam exchanging performance.
18) Chassis supports both 10/100M media converters and 10/100/1000M media converters
and realizes mixing management of the two kinds of media converters
19) Auto MDI/MDIX provides automatic cross
20) Standalone chassis with internal special communication power supply, chassis support dual redundant power supply(support OLP function)
21) Fiber media converter module, SFP module, cascading card and NMS card support hot plug
Advantages
* Master-and-slave structure, Max. cascading chassis number is 4.
* The failure of the management card won’t influence the work of other modules.
* Supporting remote and local management
* Supporting protocols like CONSOLE, WEB and SNMP
* Interface for management: RS232 Console Port (RJ45) and 10/100Mbps RJ-45 Ethernet port
* Complete system information can be set up and displayed, including the name of the chassis, terrain information, IP address and the versions of the hardware and soft ware.
* The status of 10/100M media converters with IP113A/C/F/M chipsets can be monitored and
queried at the same chassis system.
* Support SFP, CWDM SFP, DWDM SFP.
* Media converter card supports protocols like Q-in-Q Double Tag VLAN, IEEE802.1q Tag VLAN and IEEE802.3x Flow control
* Detailed information regarding power supply can be tracked including AC or DC, power and present
working status.
* Real time display of voltage and temperature on the cards of the media converters
* Each port at local or remote devices can be set up or tracked, including the connecting status,
connecting speed, half/full duplex, port locked LFP.
* With rate limiting, any rate between 0Mbps and 100M bps can be set at the basic frame of 32Kbps,
and any rate between 0Mbps and 1000M bps can be set at the basic frame of 64Kbps
* Supporting Link Loopback test, precisely locating the failure, convenient for link test
Remote power off alarming, precisely distinguish remote failure
* With SNMP protocol, Trap Destination and Community Name and related right can be set up, real time
receive and display of alarming information in way of SNMP Trap, special supervising window,
bumping alarming information.
* Offering MIB files, convenient to be merged to the third party’s software like Openview and SNMPC
* Powerful historical alarming and operating log information tracking and management function
* Flow statistic and pre-alarming function, real-time display of the communication status at each port
support Equipment remote-restart, system or module restart by management software
* With graded management mode (common user, super user and administrator), and user identification
function
* Reset to factory set up or dip switch status are optional
* Supporting online upgrading by FTP
* NMS supports network device auto-detect and auto-adding
* Real-time display of voltage and temperature on the chassis and the operating status of he fans
* With centralized management and Top tree, several chassis can be managed in the same interface
at the same time; with grouping management any converter can be conveniently manipulated among
many converters
Technical Parameters
Ethernet Interface
1) Meet standards: IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah
2) Data rate: 10Mbps, 100Mbps half/full duplex auto-sensing
3) Connector: RJ-45
4) UTP CAT5 or CAT5E connecting with RJ-45, transmission distance at 100m
Fiber port
1) Connector: ST, SC, FC
2) Operating wavelength: 850nm, 1310nm at Multi-mode; 1310nm, 1550nm at single mode.
3)Optical fibers:
Multi-mode: 50/125,62.5/125,100/140um;
Single-mode: 8.3/125,8.7/125,9/125,10/125um
Basic working environment
Operating Temp: 0~50℃ Storage Temp: -10~70℃
Humidity: 5%~90%(non-condensing)
Dimension(standalone): 156mm(W)*128mm(D)*32mm(H)
Power supply: 85VAC~265VAC or -40VDC~-57VDC
Order Information
Part Number |
Package |
Description |
FMC-GEC14-05K |
2U Card |
10/100/1000Mbps,MMF850nm,550m,LC LFP,non-PWR,non-SNMPⅡ |
FMC-GEC14-05KM |
2U Card |
10/100/1000Mbps,MMF850nm,550m,LC LFP,non-PWR,SNMPⅡ |
FMC-GEC14-10K |
2U Card |
10/100/1000Mbps,SMF1310nm,10km,LC LFP,non-PWR,non-SNMPⅡ |
FMC-GEC14-10KM |
2U Card |
10/100/1000Mbps,SMF1310nm,10km,LC LFP,non-PWR,SNMPⅡ |
FMC-GEC14-20K |
2U Card |
10/100/1000Mbps,SMF1310nm,20km,LC LFP,non-PWR,non-SNMPⅡ |
FMC-GEC14-20KM |
2U Card |
10/100/1000Mbps,SMF1310nm,20km,LC LFP,non-PWR,SNMPⅡ |
FMC-GEC14-40K |
2U Card |
10/100/1000Mbps,SMF1550nm,40km,LC LFP,non-PWR,non-SNMPⅡ |
FMC-GEC14-40KM |
2U Card |
10/100/1000Mbps,SMF1550nm,40km,LC LFP,non-PWR,SNMPⅡ |
FMC-GEC14-60K |
2U Card |
10/100/1000Mbps,SMF1550nm,60km,LC LFP,non-PWR,non-SNMPⅡ |
FMC-GEC14-60KM |
2U Card |
10/100/1000Mbps,SMF1550nm,60km,LC LFP,non-PWR,SNMPⅡ |
FMC-GEC14-80K |
2U Card |
10/100/1000Mbps,SMF1550nm,80km,LC LFP,non-PWR,non-SNMPⅡ |
FMC-GEC14-80KM |
2U Card |
10/100/1000Mbps,SMF1550nm,80km,LC LFP,non-PWR,SNMPⅡ |
FMC-GEC14-100K |
2U Card |
10/100/1000Mbps,SMF1550nm,100km,LC LFP,non-PWR,non-SNMPⅡ |
FMC-GEC14-100KM |
2U Card |
10/100/1000Mbps,SMF1550nm,100km,LC LFP,non-PWR,SNMPⅡ |
FMC-GES14-05K |
Standalone |
10/100/1000Mbps,MMF850nm,550m,LC LFP,96~230VAC,non-SNMPⅡ |
FMC-GES14-05KM |
Standalone |
10/100/1000Mbps,MMF850nm,550m,LC LFP,96~230VAC,SNMPⅡ |
FMC-GES14-10K |
Standalone |
10/100/1000Mbps,SMF1310nm,10km,LC LFP,96~230VAC,non-SNMPⅡ |
FMC-GES14-10KM |
Standalone |
10/100/1000Mbps,SMF1310nm,10km,LC LFP,96~230VAC,SNMPⅡ |
FMC-GES14-20K |
Standalone |
10/100/1000Mbps,SMF1310nm,20km,LC LFP,96~230VAC,non-SNMPⅡ |
FMC-GES14-20KM |
Standalone |
10/100/1000Mbps,SMF1310nm,20km,LC LFP,96~230VAC,SNMPⅡ |
FMC-GES14-40K |
Standalone |
10/100/1000Mbps,SMF1550nm,40km,LC LFP,96~230VAC,non-SNMPⅡ |
FMC-GES14-40KM |
Standalone |
10/100/1000Mbps,SMF1550nm,40km,LC LFP,96~230VAC,SNMPⅡ |
FMC-GES14-60K |
Standalone |
10/100/1000Mbps,SMF1550nm,60km,LC LFP,96~230VAC,non-SNMPⅡ |
FMC-GES14-60KM |
Standalone |
10/100/1000Mbps,SMF1550nm,60km,LC LFP,96~230VAC,SNMPⅡ |
FMC-GES14-80K |
Standalone |
10/100/1000Mbps,SMF1550nm,80km,LC LFP,96~230VAC,non-SNMPⅡ |
FMC-GES14-80KM |
Standalone |
10/100/1000Mbps,SMF1550nm,80km,LC LFP,96~230VAC,SNMPⅡ |
FMC-GES14-100K |
Standalone |
10/100/1000Mbps,SMF1550nm,100km,LC LFP,96~230VAC,non-SNMPⅡ |
FMC-GES14-100KM |
Standalone |
10/100/1000Mbps,SMF1550nm,100km,LC LFP,96~230VAC,SNMPⅡ |
|
