Feature:
Compliant with SFP MSA and SFF-8477 with LC receptacle
Compliant with IEE802.3z
Operating date rate upto 1.25Gbps
Metal enclosure for lower EMI
+3.3V single power supply
80Km reach with 9/125u single mode fiber (SMF)
Complies with RoHS directive (2002/95/EC)
Hot-Pluggable SFP Footprint LC Optical Transceiver
Class 1 Laser International Safety Standard IEC-60825 Compliant
Compliant with Fiber Channel 1X SM LC-L FC-PI
SFP-GB-xx-CSC & SFP-GE-BX-U/D
Compliant with IEEE 802.3z Gigabit Ethernet
Compliant with Fiber Channel 1X SM-LC-L FC-PI
SFP-FE-xxx-CSC & SFP-GE/FE-CSC modules
Compliant with IEEE802.3100BASE-FX
Compliant with IEEE802.3ah100BASE-FX
Compliant with Intermediate-Reach ATM,SDH/SONET OC-3/SDH STM-1 (S-1.1)
Can be used on Optical Line Converter xFMFF4040-100
SFP-GE-xxx-CSC modules
Compliant with IEEE802.3z
Gigabit Ethernet
Digital Diagnostic Function
Extended operating temperature
Order Information
|
Product Number |
Compatible Cisco P/N |
Description |
|
1) SFP-GE-BX-D |
GLC-BX-D |
1000BASE-BX 1490nm TX/1310nm RX single fiber SM (LC) [10km/6.2mi.] |
|
2) SFP-GE-BX-D40 |
GLC-BX-D-40 |
1000BASE-BX 1490nm TX / 1310nm RX single fiber single mode (LC) [40 km/24.9 mi.] |
|
3) SFP-GE-BX-D60 |
GLC-BX-D-60 |
1000BASE-BX 1490nm TX / 1310nm RX single fiber single mode (LC) [60 km/37.3 mi.] |
|
4) SFP-GE-BX-U |
GLC-BX-U |
1000BASE-BX 1310nm TX/1490nm RX single fiber SM (LC) [10km/6.2mi.] |
|
5) SFP-GE-BX-U40 |
GLC-BX-U-40 |
1000BASE-BX 1310nm TX / 1490nm RX single fiber SM (LC) [40 km/24.9 mi.] |
|
6) SFP-GE-BX-U60 |
GLC-BX-U-60 |
1000BASE-BX 1310nm TX / 1490nm RX single fiber SM (LC) [60 km/37.3 mi.] |
|
7) SFP-FE-100BX-D |
GLC-FE-100BX-D |
100BASE-BX 1550nm TX/1310nm RX single fiber SM (LC) [20km/12.4mi.] |
|
8)SFP-FE-100BX-U |
GLC-FE-100BX-U |
100BASE-BX 1310nm TX/1550nm RX single fiber SM (LC) [20km/12.4mi.] |
|
9) SFP-FE-100FX-CSC |
GLC-FE-100FX |
100BASE-FX 1300nm multimode (LC) [2 km/1.2 miles] |
|
10) SFP-FE-100LX-CSC |
GLC-FE-100LX |
100BASE-FX 1310nm single mode (LC) [20 km/12.4 miles] |
|
11)SFP-GE/FE-CSC |
GLC-GE-100FX |
100BASE-FX 1300nm multimode (LC) [2 km/1.2 miles] |
|
12) SFP-GB-LX-CSC |
GLC-LH-SM |
1000BASE-LX 1310nm single mode (LC) [10 km/6.2 miles] |
|
13) SFP-GB-SX-CSC |
GLC-SX-MM |
1000BASE-SX 850nm multimode (LC) [62.5/125µm: 220 m/722 ft.; 50/125µm: 550 m/1804 ft.] |
|
14) SFP-GB-SX-2K-CSC |
GLC-SX-MM-2K |
1000BASE-SX 1300nm (LC) Ext. MM [2 km/1.2 mi.] |
|
15) SFP-T-CSC |
GLC-T |
1000BASE-T (RJ-45) [100 m/328 ft.] |
|
16) SFP-GB-ZX-CSC |
GLC-ZX-SM |
1000BASE-LX 1550nm single mode (LC) [80 km/49.7 miles] |
|
17) SFP-GE-LX-CSC |
SFP-GE-L |
1000BASE-LX 1310nm single mode (LC) [10 km/6.2 miles] |
|
18) SFP-GE-SX-CSC |
SFP-GE-S |
1000BASE-SX 850nm multimode (LC) [62.5/125µm: 220 m/722 ft.; 50/125µm: 550 m/1804 ft.] |
|
19) SFP-GE-ZX-CSC |
SFP-GE-Z |
1000BASE-LX 1550nm single mode (LC) [80 km/49.7 miles] |

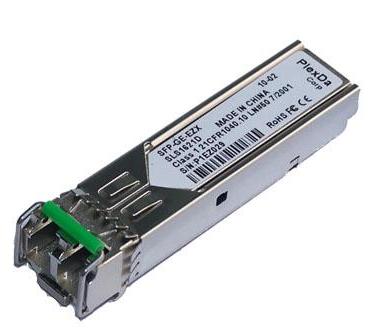

The Plexda SFP-xxxx-CSC series small form factor pluggable (SFP) transceiver modules are designed to install in any SFP port allowing for 1000Base-T, 1000Base-SX, 1000Base-LX or 1000Base-ZX interfaces to the network through the SFP connector. The SFP-xxxx-CSC transceivers are Cisco compatible and are designed for bidirectional serial-optical data communication such as Gigabit Ethernet or fiber channel at speeds up to 1.25Gb/s.
Plexda’ SFP modules fully comply with the Multi Sourcing Agreement (MSA). This compliance allows our SFP modules to be used in all other MSA compliant SFP platforms. In addition, SFP-xxxx-CSC modules are also compatible with all Cisco SFP-based routers and switches, as well as Cisco’s IOS software. SFP-xxxx-CSC modules ARE NOT Cisco OEM brand modules.
|
