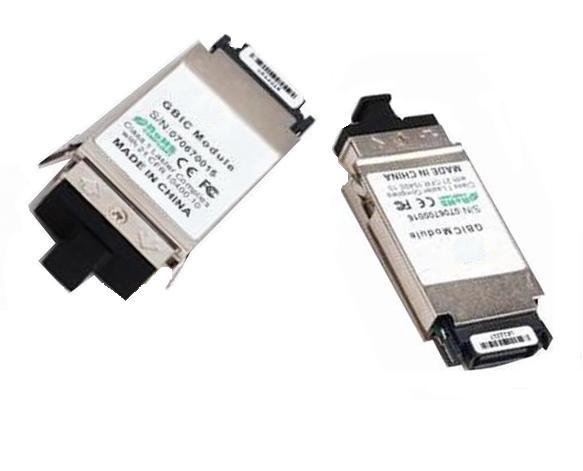

Plexda’s GBIC transceiver is a plug-in module and it is hot-swappable. It allows for seamless integration of fiber with copper LAN connections wherever GBIC interface slots are available. Such device is economical, it saves time, offers flexibility and eliminates the necessity for replacing entire devices when the customers need to change or upgrade fiber connections.
Product Features
· Up to 1.25 Gb/s bi-directional data links
· 1550 nm DFB laser transmitter, Dual SC connector
· Compliant with 802.3z 1000BASE-SX,1000BASE-LX or 1000BASE-ZX
· Hot-swappable (complies with GBIC specification Rev. 5.5)
· TTL Logic Interface
· Optional digital diagnostics functions
· Fully metallic enclosure for low EMI
· Plug-and-Play module
· Laser Class 1 Product
Specifications
|
Fiber Optic transceiver Specs |
|
Multimode
SLG1850-XX |
Min TX PWR: -10.0 dBm
Max TX PWR: -4.0 dBm
RX Sensitivity: -17.0 dBm
Max In PWR: 0.0 dBm
Link Distance: 550m |
|
Single Mode |
|
SLG1310-XX |
Min TX PWR: -10.0 dBm
Max TX PWR: -3.0 dBm
RX Sensitivity: -22.0 dBm
Max In PWR: 0 dBm
Link Distance: 15km |
|
SLG1410-XX |
Min TX PWR: -3.0 dBm
Max TX PWR: 0.0 dBm
RX Sensitivity: -22.0 dBm
Max In PWR: 0 dBm
Link Distance: 50km |
|
SLG1510-XX |
Min TX PWR: 0 dBm
Max TX PWR: +5.0 dBm
RX Sensitivity: -24.0 dBm
Max In PWR: 0 dBm
Link Distance: 80km |
|
*SLGT00-XX |
1000BASE-T
RJ45 Category 5
Link Distance: 100m |
|
Dimensions |
Width: 1.2" [30 mm]
Depth: 2.6" [65 mm]
Height: 0.40" [10 mm] |
|
Power |
3~5V, no external power required |
|
Power Consumption |
0.8 watts |
|
Environment |
0°C~70°C |
|
Warranty |
Lifetime |

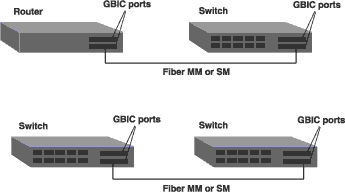

Application:
Order Information:
|
Product Number |
Compatible Cisco P/N |
Description |
|
1) SLG1850-CSC |
WS-G5484 |
1000BASE-SX 850nm multimode (SC) [MMF 550m] |
|
2) SGL1310-CSC |
WS-G5486 |
1000BASE-LX 1310nm single mode (SC) [SMF 15 km] |
|
3) SLG1410-CSC |
WS-G5486+ |
1000BASE-EX 1550nm single mode (SC) [SMF 50km] |
|
4) SLG1510-CSC |
WS-G5487 |
1000BASE-ZX 1550nm single mode (SC) [SMF 80km] |
|
5) SLGT00-CSC |
WS-G5483 |
1000BASE-T Category 5 (RJ45) [100m] | |
