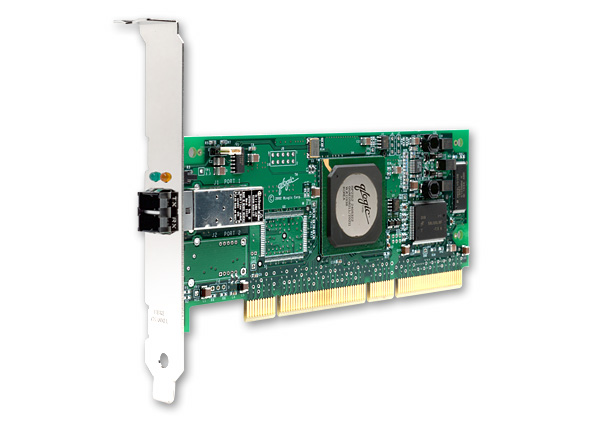

| The HBAFC41 is the industry first, true enterprise class, 4-Gbps to PCI-X 2.0 HBA. The HBAFC41 not only delivers unprecedented levels of performance and availability, but also intelligent networking features specific to enterprise class data centers.
High Performance
300,000 IOPS delivers high I/O transfer rates for storage applications
Intelligent interleaved DMA (iiDMA) ensures maximum utilization of data links
Out-of-Order Frame Reassembly (OoOFR) reduces congestion and retransmissions
Superior Scalability
Multi-ID and N_Port virtualization ready. Allows physical ports to be part of multiple logical networks
Cisco VSAN ready. Allows physical ports to be part of multiple logical networks
Comprehensive Operating System (OS) driver support including Windows®, Linux™, Solaris™, NetWare, and Mac OS®
Universal boot support manages multiple hardware platforms and boot options
Enhanced Reliability
Overlapping protection domains for continuous protection of internal data paths
T10 Cyclic Redundancy Check (CRC) ensures end-to-end data integrity across Storage Area Networks (SANs)
Three LEDs display real-time status and link activity information
Host Bus Interface Specifications
Bus interface
64-bit, PCI-X 2.0 266-MHz DDR, compatible with 66/33-MHz PCI and 133/100/66-MHz PCI-X
Single voltage
3.3V (mode 1), 3.3V/1.5V (mode 2)
Memory
1-MB SRAM, 1-MB flash (SPI), and 2-KB NVRAM (SPI)
Hardware platforms
IA32 (x86), IA64, IEM64T, AMD Opteron 64, Sun SPARC, Apple G5 (Xserve and Power Mac)
Compliance
PCI Local Bus Specification, revision 2.3, PCI-X Protocol Addendum to the PCI Local Bus Specification, revision 2.0a, PCI-X Electrical and Mechanical Addendum (revision 2.0a) to the PCI Local Bus Specification, PCI Bus Power Management Interface Specification revision 1.1, PCI Hot Plug Specification, revision 1.0
Fibre Channel Specifications
Data rate
4/2/1 Gbps auto-negotiation (4.2480/ 2.1240/ 1.0625 Gbps)
Performance
150,000 IOPS
Topology
Point-to-point (N_Port), arbitrated loop (NL_Port), and switched fabric (N_Port)
Logins
Support for F_Port and FL_Port login. 2,048 concurrent logins and 2,048 active exchanges
Class of service
Class 2 and 3
Protocols
FCP (SCSI-FCP), IP (FC-IP), FC-TAPE (FCP-2)
Compliance
SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-2), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS)
Physical Specifications
Ports
Single 4-Gbps FC
Connections
Small form factor fixed (SFF) multimode optic with LC-style connector
Form factor
Low-profile MD2: 16.93 cm ??5.15 cm (6.7 in. ??2.5 in.)
Power dissipation
6.5 W (maximum)
Cable distances
1Gbps: 500 meters 50/125 fiber, 300 meters 62.5/125 fiber
2Gbps: 300 meters 50/125 fiber, 150 meters 62.5/125 fiber
4Gbps: 150 meters 50/125 fiber, 70 meters 62.5/125 fiber
|
SFP Module
