Feature:
Compliant with SFP MSA and SFF-8477 with LC receptacle
Compliant with IEEE802.3z 1000BASE-SX/LX/ZX
Compliant with Long-Reach ATM,SDH/SONET OC-24/SDH STM-4
Can be used on Optical Line Converter xFMFF4040-100
Metal enclosure for lower EMI
+3.3V single power supply

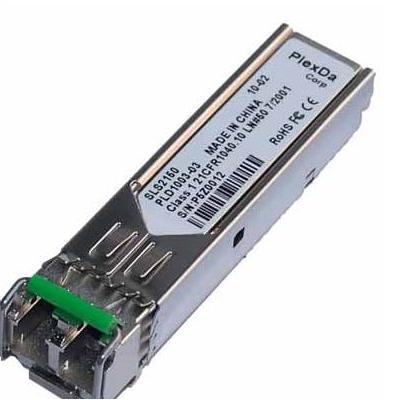

Hot-Pluggable SFP Footprint LC Optical Transceiver
Class 1 Laser International Safety Standard IEC-60825 Compliant
Applications
Gigabit Ethernet Links
1.25Gb/s, SDH/SONET OC-24/SDH STM-4
High speed I/O for file servers
Fiber Channel
Switch to Switch interface
Distributed multi-processing
Channel extender, Data storage
Specification:
|
Compliant Standards |
3CSFP81/82/85/86-SNL IEEE 802.3ab |
|
|
3CSFP91/92/93/97-SNL IEEE 802.3z |
|
Data Link Protocol |
Fast Ethernet or Gigabit Ethernet |
|
Data Transfer Rate |
3CSFP81/82/85/86-SNL 100Mbps (100BASE-FX) |
|
|
3CSFP91/92/97-SNL 1.25Gbps (1000BASE-SX/LX/ZX) |
|
Dimensions (HxWxD) |
0.33 in x 0.53 in x 2.22 in |
|
Enclosure Type |
Plug-in module |
|
Device Type |
SFP Transceiver |
|
Max Transfer Distance |
3CSFP81-SNL 2km |
|
|
3CSFP82-SNL 15km |
|
|
3CSFP85-SNL 15km |
|
|
3CSFP86-SNL 15km |
|
|
3CSFP91-SNL 550m |
|
|
3CSFP92-SNL 10km |
|
|
3CSFP93-SNL 100m |
|
|
3CSFP97-SNL 70km |
|
Form Factor |
Plug-in module | |
