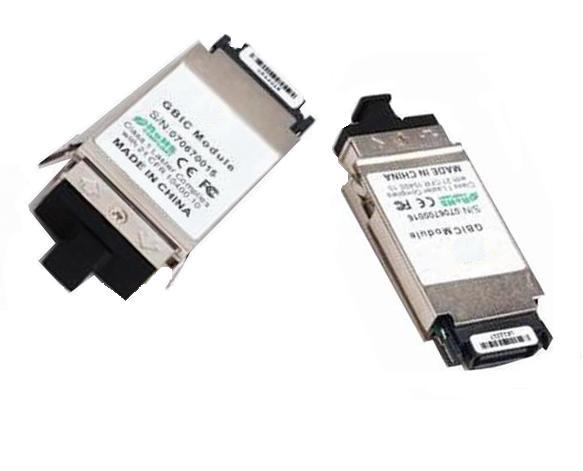

The FWDM-1622 series optical transceivers meet the Gigabit Interface Converter (GBIC) specification Rev. 5.5. It satisfies the optical interface specifications defined in IEEE802.3z Drift 5.0 for Gigabit Ethernet. There are eighteen center wavelengths available from 1270 nm  to 1610nm, each step 20nm. A guaranteed minimum optical link budget of 24dB is offered. The transmission distance is depended on the wavelength and loss of fiber.

The transmitter section uses a multiple quantum well CWDM DFB laser and is a class1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. A PECL input / output logic interface is used. TTL  RX-LOS output simplifies interface  to  external  circuitry. A 20-pin  SCA-2  host connector is used to connect the converter to the host system.

Features

Operating data rate up to 1.25Gbps

18-Wavelength CWDM DFB LD Transmitter from 1270 nm to 1610 nm, with step 20 nm

24 dB Power Budget at Least

Single 5V/3.3V Power supply and TTL/LVTTL Logic Interface

Duplex SC Connector Interface

Hot Pluggable

Operating Case Temperature

Standard: 0 ~+70℃

Industrial:-40~+85℃

Compliant with GBIC Specification Rev. 5.5

Applications

Switch to Switch Interface

High Speed Interface for File Servers

Bus Extension Application

Data Storage

 CWDM Wavelength

CWDM*: 18 Wavelengths from 1270 nm to 1610 nm, each step 20 nm.

Specification

Order Information
