The FMC-FES14(M) series TX to FX manageable fiber media converter is a Fast Ethernet media converter

 that translates transmission signals from a twisted-pair 10/100BASE-TX cable to 100BASE-FX fiber optic

cable.It extends network data transmission distances beyond the 100 meters limitation distances of copper

wire up to 2 kilometers by using Multimode fiber optic model or 120 kilometers by using Single Mode fiber

optic model.

The FMC-FES14-80KM 10/100BaseTX-to-FX Media Converter is typically used to connect Fast Ethernet

devices, such as 100Base-TX Hubs, at long distance. The 100BaseTX-to-FX Media Converter will connect

servers or workstations located up to 80 kilometers from each other. It with simple set-up and complete

function management interface, it support protocols like SNMP, WEB, TELNET, CONSOLE and offering MIB

 database for convenient to be merged to the party’s SNMP, and realizes the integrated management to all

chassis.

Features:

* Support 10Base-T, 100Base-TX, 100Base-FX

* Meet standards IEEE 802.3 10 Base-T, 802.3U,100Base-TX, 100Base-FX protocols

* With high performance auto-sensing exchanging chipset meeting industrial standard,

   secure  and steady data transmission is ensured with non-traffic jam exchanging performance.

* Chassis  supports both 10/100M media converters  and 10/100/1000M  media  converters

   and realizes mixing management of the two kinds of media converters

* The 10/100M media converter cards can realize Max.2046bytes packet at store-and-forward mode,

   Max. 9K bytes packet at cut-through mode

* Auto MDI/MDIX provides automatic cross

* Standalone chassis with internal special communication power supply, chassis support dual

   redundant power supply(support OLP function)

* Fiber media converter module, SFP module, cascading card and NMS card support hot plug.

* One RJ45 10/100Base-TX ports.

* Auto Half/Full Duplex data mode

* Auto Negotiate 10/100M

* Standalone style

Advantages

* Supporting remote and local management

* Supporting protocols like CONSOLE, WEB and SNMP

* The status of 10/100M media converters with IP113A/C/F/M chipsets can be monitored and

  queried at the same chassis system.

* Support SFP, CWDM SFP, DWDM SFP.

* Media converter card supports protocols like Q-in-Q Double Tag VLAN, IEEE802.1q Tag VLAN

  and IEEE802.3x Flow control

* Detailed information can be present working status.

*  local or remote devices can be tracked, including the connecting status, connecting speed,

    half/full duplex, port locked LFP.

* Supporting Link Loopback test.

* With SNMP protocol, Trap Destination and Community Name and related right can be set up

* Support Equipment remote-restart, system or module restart by management software.

* Reset to factory set up or dip switch status are optional

* Supporting online upgrading by FTP

* NMS supports network device auto-detect and auto-adding

* With centralized management and Top tree, several chassis can be managed in the same

   interface at the same time; with grouping management any converter can be conveniently

  manipulated among many converters

Technical Parameters

  Ethernet Interface

1) Meet standards: IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah

2) Data rate: 10Mbps, 100Mbps half/full duplex auto-sensing

3) Connector: RJ-45

4) UTP CAT, 5 or CAT5E connecting with RJ-45, transmission distance at 100m



Fiber port

1) Connector: ST, SC, FC

2) Operating wavelength: 1550nm at single mode.

3) Optical fibers: Single-mode: 8.3/125,8.7/125,9/125,10/125um

4) Output optical power: -5 ~ -3dBm

     Receiving sensitivity: -38dBm

     Basic working environment

Operating Temp: 0~50℃ Storage Temp: -10~70℃

Humidity: 5%~90%（non-condensing）

Dimension(standalone): 156mm*128mm*32mm(Power supply inside)

                                                98mm*59mm*24mm(Power supply outside)

Power supply: 85VAC~265VAC

Power consumption: 2.5W

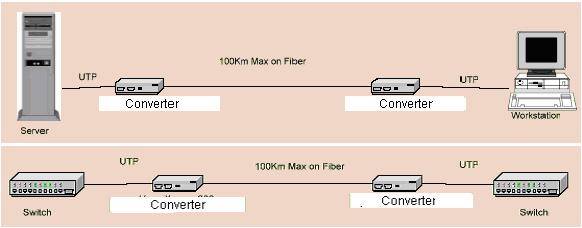

APPLICATION:
