This kind of rack mount media converter is a 2U rack mount media converter combine with a Network Management Unit (MCU). The whole rack contains 16 pieces of media converter module and 1 piece of network managed module. Each module can be used separately, and different kind of converter module can be inserted into one rack. The rack mount media converter adopts communication isolation technology to separate the system power from the converter module totally. Guaranteed  the dependability of the whole system.it supports protocols like SNMP, WEB,TELNET and CONSOLE, and realizes the integrated management to all chassis, Offering MIB files, convernient to be merged to the third party's software like Openview and SNMPC.

The network management of 2U Rack Mount Enhanced Network Managed Media Converter is capable to manage the network. This network management polls the active fiber module, displays the type of installed cards, link status as well as other important information. The Network Management also enables/disables each port on the Line Cards, enables module loop-back testing and provides the ability to configure system parameters such as the system IP address. The system supports up to 16 Line Cards and each MCU can work with RJ-45 interface or fiber interface. By combining the TX and the optional FX port on the MCU card, all Line Cards are hot swappable and redundant power supplies option is available. The MCU module provides four ways to manage the Optoscape chassis, LineCards and Fiber infrastructure.

Features:

1) Master-and-slave structure, Max. cascading chassis number is 4

2) The failure of the management card won’t influence the work of other modules.

3) Supporting remote and local management

4) Supporting protocols like CONSOLE, WEB and SNMP

5) Interface for management: RS232 Console Port (RJ45) and 10/100Mbps RJ-45 Ethernet port

6) Complete system information can be set up and displayed, including the name of the chassis, terrain information, IP address and the versions of the hardware and soft ware.

7) The status of 10/100M media converters with IP113A/C/F/M chipsets can be monitored and queried at the same chassis system.

8) 10/100/1000M media converter card support SFP, CWDM SFP, DWDM SFP and can also display

it’s DDM function.

9) Media converter card supports protocols like Q-in-Q Double Tag VLAN, IEEE802.1q Tag VLAN and IEEE802.3x Flow control

10) Detailed information regarding power supply can be tracked including AC or DC, power and present working status.

11) Real time display of voltage and temperature on the cards of the media converters

12) Each port at local or remote devices can be set up or tracked, including the connecting status, connecting speed, half/full duplex, port locked and LFP.

13) With rate limiting, any rate between 0Mbps and 100M bps can be set at the basic frame of 32Kbps, and any rate between 0Mbps and 1000M bps can be set at the basic frame of 64Kbps

14) Supporting Link Loopback test, precisely locating the failure, convenient for link test

15) Remote power off alarming, precisely distinguish remote failure

16) With SNMP protocol, Trap Destination and Community Name and related right can be set up, real time receive and display of alarming information in way of SNMP Trap, special supervising window, bumping alarming information.

17) Offering MIB files, convenient to be merged to the third party’s software like Openview and SNMPC

18) Powerful historical alarming and operating log information tracking and management function

19) Flow statistic and pre-alarming function, real-time display of the communication status at each port

     support Equipment remote-restart, system or module restart by management software

20) With graded management mode (common user, super user and administrator), and user identification function

21) Reset to factory set up or dip switch status are optional

22) Supporting online upgrading by FTP

23) NMS supports network device auto-detect and auto-adding

24) Real-time display of voltage and temperature on the chassis and the operating status of he fans

25) With centralized management and Top tree, several chassis can be managed in the same interface

at the same time; with grouping management any converter can be conveniently manipulated

among many converters

Management Features:

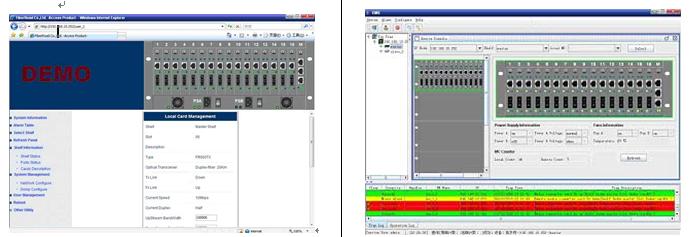

1) An administration console
Using Menu driven console text via the RS232 connector on the MCU module
