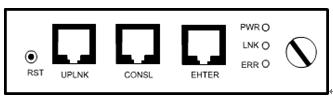

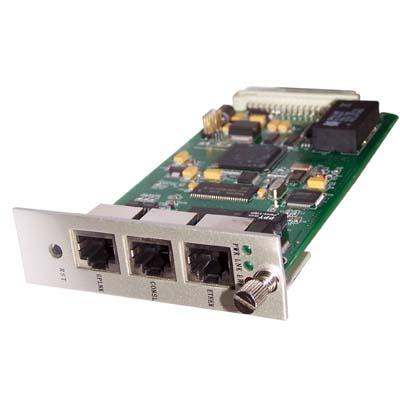

1. Front panel

2.Ports:

ETHER:10/100M RJ45connecting to Internet, management center can manage by WEB, SNMP, and TELNET through this port

CONSL : standard RS232 for local CLI management

UPLNK: cascading port

3.LED introduction

4.Buttons introduction

RST:  recover to  factory default  setting（IP Address  192.168.1.251,  Sub  mask: 255.255.255.0,

Gateway:192.168.1.1）

Notice:  Please  press  RST  and  insert  management  card  to  the  chassis  when  use  RST

function. After around 30 minutes, the management card will recover to factory setting.

5. Port connection introduction

5．1 ETHER port: When connect to switch/Hub please use Straight-through cable, when

connect to PC card please use Cross-over cable

5．2 CONSL port: Please use the matched serial cable(RJ45 TO DB9)

5．3 UPLNK port:     use standard straight-through or cross-over cable

II. Instruction for Cascading card

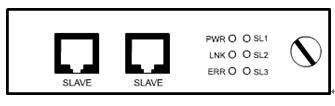

1. Front panel

2.Ports:

SLAVE:      connect to management card or other cascading card SLAVE :         connect to management card or other cascading card Notice: either port is applicable since they have same function.

3.LED introduction:

4.Cable connection introduction

Communicate with standard RS485 cable, connector RJ45, transmitting distance can rach

1KM, pls use either straight-through cable or cross-over cable to connect the sub card.

.

5.Switch introduction

There is a switch in the cascading card, used for setting cascading card No.. Please finish above operation before starting power supply.

Notice:  When  there  are  more  than  one  cascading  cards,  each  cascading  card

should be setting with different numbers, or there will be clash causing wrong data transmission.
