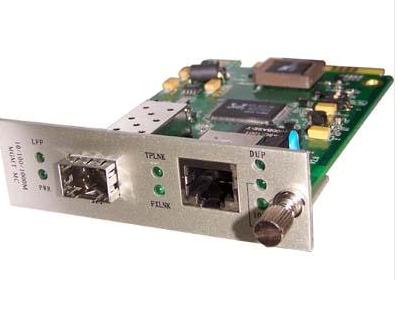

The FMC-GEBD15-C60M  single fiber Bi-di Media Converter complies with IEEE802.3z, IEEE802.3ab Standards. It is designed to convert data signal between 10/100/1000 Base-T and 1000Base-SX/LX/ZX Gigabit Ethernet. It supports 10/100/1000Base-T and 1000Base-SX/LX/ZX applications. The data signal converted by such high performance media converter can be transmitted up to 60Km maximum by fiber-optical cable.

The Converter is equipped with two fiber optic connectors (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jacks and one external power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation.

It is compact, cost-effective, low dissipative, high reliable and stable. It is used in standalone applications and allowing complete function management, it support protocols like SNMP,WEB, TELNET, CONSOLE and offering MIB database for convenient to be merged to the party’s SNMP, and realizes the integrated management to all chassis.

Features:

1). Support the IEEE802.3 fast Ethernet standard (10Mbps)

2). Support the IEEE802.3u Fast Ethernet standard(100Mbps)

3). Support the IEEE802.3ab,IEEE802.3z Gigabit Ethernet standard (1000Mbps)

4). Support the IEEE802.3x full-duplexes flow control

5). Support the IEEE802.1d spanning tree protocol

6). Support the IEEE802.1Q VLAN remark protocol

7). Full-duplexes, half-duplex auto negotiation

8). 10M/100M/1000M bit rate auto negotiation

9). Ext. Power or Int. Power for option, AC and DC input for option

10). Built in high efficiency SRAM for packet buffer, with 1K-entry lookup table and 4-way associative hash algorithm.

11). Half duplex: back pressure flow control

Full duplex: IEEE802.3x flow control

12). Automatic identification of MDI/MDI-X cross line.

13). Max.2046bytes packet at store-and-forward mode, Max.9K bytes packet at cut-through mode

14). low power consumption, low heat, standalone type with 2.5W special communication power supply

15). Support LFP function.

16). In conformity to safety code of FCC and 15 CLASS A and CE MARK.

17) With high performance auto-sensing exchanging chipset meeting industrial standard,

secure and steady data transmission is ensured with non-traffic jam exchanging performance.

18) Chassis  supports both 10/100M media converters  and 10/100/1000M  media  converters

 and realizes mixing management of the two kinds of media converters

19) Auto MDI/MDIX provides automatic cross

20) Support hot plug

21) Supporting remote and local management

22) Supporting protocols like CONSOLE, WEB and SNMP

23) Support SFP, CWDM SFP, DWDM SFP.

24) Media converter card supports protocols like Q-in-Q Double Tag VLAN, IEEE802.1q Tag VLAN and

        IEEE802.3x Flow control

25) With rate limiting, any rate between 0Mbps and 100M bps can be set at the basic frame of 32Kbps,

       and any rate between 0Mbps and 1000M bps can be set at the basic frame of 64Kbps

26) Supporting Link Loopback test, precisely locating the failure, convenient for link test remote

      power off alarming, precisely distinguish remote failure

27)  Reset to factory set up or dip switch status are optional

28) NMS supports network device auto-detect and auto-adding

Technical Parameters

Ethernet Interface

1) Meet standards: IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah

2) Data rate: 10Mbps, 100Mbps half/full duplex auto-sensing

3) Connector: RJ-45

4) UTP CAT5 or CAT5E connecting with RJ-45, transmission distance at 100m



Fiber port

1) Connec, tor: LC, SC,

2) Operating wavelength: TX:1550nm/ RX1310nm at single mode

3)Optical fibers: Single-mode: 9/125um
