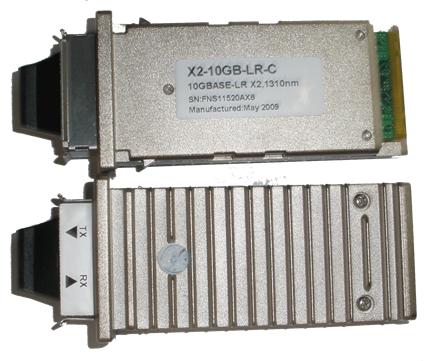

| X2-10GB-LR |
 |
|
|
|
|
主要特點 |
|
10.3Gb/s,1310nm DFB/PIN,
SMF LC 10km,0~70℃
|
|
|
|
| 產品說明 |
|
|
|
產品特點:
1) 支持GE 和10G 以太網應用
X2-10GB-SR 850nm VCSEL and PIN接收
X2-10GB-LR 1310nm DFB and PIN接收
X2-10GB-ER 1550nm DFB and PIN接收
2) SFI 高速電信號接口
3) 集成數字診斷功能可選擇
4) X2 MSA 封裝, 雙SC接頭
5) 單電源+3.3V
6) 電源功耗小於1.0W
7) 工作溫度範圍: 0~+70°C
8）兼容 IEEE802.3ae, IEEE802.3ak, IEEE802.3aq標准
9）可熱插拔
兼容標准
|
Feature |
Standard |
Performance |
|
Electrostatic Discharge
(ESD) to the Electrical Pins |
MIL-STD-883E
Method 3015.7 |
Class 1(>1000V for SFI pins, >2000V for other pins.) |
|
Electrostatic Discharge (ESD) to the Duplex LC Receptacle |
IEC 61000-4-2
GR-1089-CORE |
Compatible with standards |
|
Electromagnetic
Interference (EMI) |
FCC Part 15 Class B
EN55022 Class B (CISPR 22B)
VCCI Class B |
Compatible with standards |
|
Immunity |
IEC 61000-4-3 |
Compatible with standards |
|
Laser Eye Safety |
FDA 21CFR 1040.10 and 1040.11
EN60950, EN (IEC) 60825-1,2 |
Compatible with Class I laser product. |
產品規格:
|
X2-10GB-SR |
Package: X2
Date Rate: 10.3Gbps
Wavelength: 850nm
TX optic Power: -7.3~-1.2dBm
RX sensitivity: <-9.9dBm
Operate Temp: 0~70℃
VCSEL and PIN, MMF SC
Reach: 300m |
|
X2-10GB-LR |
Package: X2
Date Rate: 10.3Gbps
Wavelength: 1310nm
TX optic Power: -8~0.5dBm
RX sensitivity: <-12.6dBm
Operate Temp: 0~70℃
DFB and PIN, SMF SC
Reach: 10km |
|
X2-10GB-ER |
Package: X2
Date Rate: 10.3Gbps
Wavelength: 1550nm
TX optic Power: -4.7~+4.0dBm
RX sensitivity: <-15.8dBm
Operate Temp: 0~70℃
DFB and PIN, SMF SC
Reach: 40km |
|
| Part Number |
Package |
Application |
Com-MFR |
Comp-P/N |
Parameters |
| X2-10GB-LR |
X2 |
10GEth,LR/LW |
Cisco |
X2-10GB-LR |
10.3Gb/s,1310nmDFB/PIN,SMF LC 10km |
|
|
