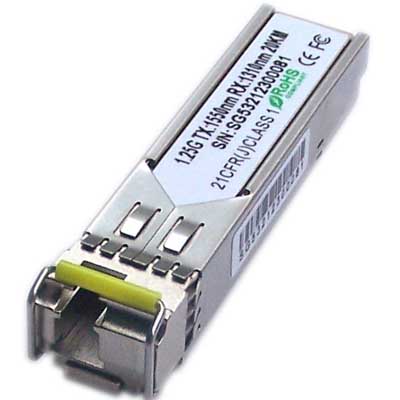

The SFP-GE-BX1x series is small form factor pluggable module for Gigabit Ethernet IEEE802.3z 1000BASE-BX 1.25Gb/s single fiber communications by using 1310 nm/1550nm(or 1490nm) transmitter and 1550 nm(1490nm)/1310nm receiver. It is support hot plug capability.
The transmitter section uses a multiple quantum well A type/ B type laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated B type/ A type detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Features
Operating data rate up to 1.25Gbps
A type: 1310nmFPTx/1550nmRx or 1310nmFPTx/1490nmRx
B type: 1550nmDFBTx/1310nmRx or 1490nmDFBTx/1310nmRX
Distance Up to 20 km
Single 3. 3V Power supply and TTL Logic Interface
Simplex LC Connector Interface
Hot Pluggable
Operating Case Temperature
Standard: 0~+70
Industrial: -40~+85
Compliant with MSA SFP Specification
Digital diagnostic monitor interface for option
Compatible with SFF-8472
Application
WDM Gigabit Ethernet Links
SONET/SDH OC24 Equipment Interconnect
Fiber Channel Links
Specification:
|
Compliant Standards |
IEEE 802.3z 1000BASE-BX |
|
Data Transfer Rate |
1.25Gb/s (1000BASE-BX) |
|
Cabling Type |
Single mode Fiber optic |
|
Dimensions (HxWxD) |
0.33 in x 0.53 in x 2.22 in |
|
TX Central Wavelength |
TYPE A: 1270~1350nm (C-1310nm) |
|
|
TYPE B: 1500~1580nm (C-1550nm) |
|
|
1440~1520nm (C-1490nm) |
|
Enclosure Type |
Plug-in module |
|
Max. Spectral Width (RMS) |
TYPE A: 4nm |
|
|
TYPE B: 1nm |
|
Device Type |
SFP Transceiver |
|
Optical Power Pout |
TYPE A: SFP-GE-BX13 -9~ -3dBm |
|
|
SFP-GE-BX13-20 -8~ -3dBm |
|
|
TYPE B: SFP-FE-BX15 -9~ -3dBm |
|
|
SFP-FE-BX15-20 -8~ -3dBm |
|
|
SFP-FE-BX14 -8~ -3dBm |
|
RX Central Wavelength |
TYPE A: 1500~1580nm (C-1550nm) |
|
|
1440~1520nm (C-1490nm) |
|
|
TYPE B: 1260~1360nm (C-1310nm) |
|
RX Sensitivity PIN(Max.) |
SFP-GE-BX1x -20dBm |
|
|
SFP-GE-BX1x-20 -22dBm |
|
Max Transfer Distance |
SFP-GE-BX1x 10km |
|
|
SFP-FE-BX1x-20 20km |
|
Form Factor |
Plug-in module |
Environmental Parameters
|
Min Operating Temperature |
0 |
|
Max Operating Temperature |
+70 |
Order Information
|
Product Number |
Compatible Cisco P/N |
Description |
|
1) SFP-GE-BX13 |
GLC-BX-U |
1.25Gb/s,1310nmTX/1550nmRX(1490nm),SMF S-LC 10km,0~70℃,3.3V |
|
2) SFP-GE-BX15(BX14) |
GLC-BX-D |
1.25Gb/s,1550nmTX(1490nm)/1310nmRX,SMF S-LC 10km,0~70℃,3.3V |
|
3) SFP-GE-BX13-20 |
N/A |
1.25Gb/s,1310nmTX/1550nmRX,SMF S-LC 20km,0~70℃,3.3V |
|
4) SFP-GE-BX15-20 |
N/A |
1.25Gb/s,1550nmTX/1310nmRX,SMF S-LC 20km,0~70℃,3.3V |
|
5) SFP-GE-BX13-40 |
GLC-BX-U-40 |
1.25Gb/s,1310nmTX/1550nmRX(1490nm),SMF S-LC 40km,0~70℃,3.3V |
|
6) SFP-GE-BX15-40(BX14) |
GLC-BX-D-40 |
1.25Gb/s,1550nmTX(1490nm)/1310nmRX,SMF S-LC 40km,0~70℃,3.3V |
|
7) SFP-GE-BX13-60 |
GLC-BX-U-60 |
1.25Gb/s,1310nmTX/1550nmRX(1490nm),SMF S-LC 60km,0~70℃,3.3V |
|
8) SFP-GE-BX15-60(BX14) |
GLC-BX-D-60 |
1.25Gb/s,1550nmTX(1490nm)/1310nmRX,SMF S-LC 60km,0~70℃,3.3V |
|
