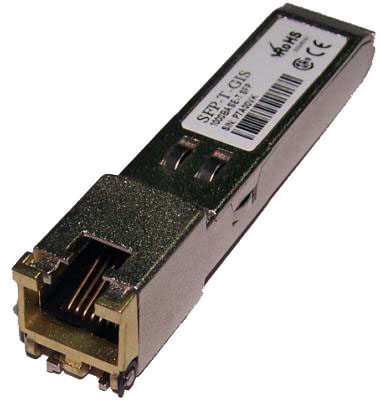

1000BASE-T Copper SFP transceivers enable system designers to design flexibility into their ports. These transceivers can be populated into optical SFP slots enabling an optical Ethernet port (1000Base-X) to be converted into a copper Ethernet port (1000Base-T) either in the field or in production. This simplifies designs and increases manufacturing efficiency through reduced component count.
The SFP-T/SFP-TA is compatible with Gigabit Ethernet and 1000BASE-T standards.
Product Features
Up to 1.25 Gb/s bi-directional data links
Hot-pluggable SFP footprint
Extended case temperature range: 0 to +75
Fully metallic enclosure for low EMI
Low power dissipation (1.2 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
10/100/1000 BASE-T operation in host systems with SGMII interface
Based on SFP MSA
Application
1.25 Gigabit Ethernet over Cat 5 cable
Gigabit Ethernet Switches and Routers
XDSL Applications
Metro Edge Switching
Compatibility
Gigabit Ethernet and 1000Base-T standards (IEEE Std 802.3z and IEEE Std 802.3ab)
Order Information
Product Number Description
1) SFP-T-CSC 1000BASE-T (RJ-45) [100 m/328] |
