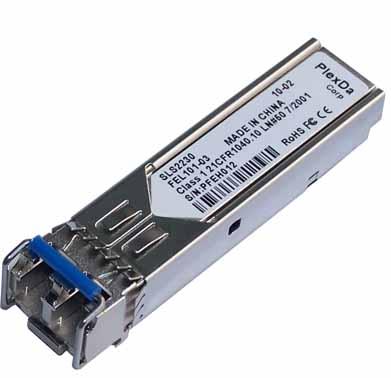

The Plexda SLS2230-H3 small form factor pluggable (SFP) transceiver modules are designed to install in any SFP port allowing for 1000Base-T, 1000Base-SX, 1000Base-LX, 1000Base-ZX or 100FX Fast Ethernet interfaces to the network through the SFP connector. The SLS-xxxx-H3 transceivers are H3C compatible and are designed for bidirectional serial-optical data communication such as Gigabit Ethernet or fiber channel at speeds up to 1.25Gb/s.
Plexda’ SFP modules fully comply with the Multi Sourcing Agreement (MSA). This compliance allows our SFP modules to be used in all other MSA compliant SFP platforms. In addition, SLS2230-H3 modules are also compatible with all H3C SFP-based routers and switches, as well as H3C’s IOS software. SLS2230-H3 modules ARE NOT H3C OEM brand modules.
Feature:
Compliant with SFP MSA and SFF-8477 with LC receptacle
Compliant with IEEE802.3 100BASE-LX
Compliant with IEEE802.3ah100BASE-LX
Compliant with Intermediate-Reach ATM,SDH/SONET OC-3/SDH STM-1 (S-1.1)
Can be used on Optical Line Converter xFMFF4040-100
Operating date rate 155Mbps
Metal enclosure for lower EMI
+3.3V single power supply
Digital Diagnostic Function for option
40km reach with 9/125u single mode fiber (SMF)
Hot-Pluggable SFP Footprint LC Optical Transceiver
Class 1 Laser International Safety Standard IEC-60825 Compliant
Applications
100Base-LX Fast Ethernet Links
155Mb/s SDH/SONET OC-3/SDH STM-1 (S-1.1)
High speed I/O for file servers
Switch to Switch interface
Distributed multi-processing
Channel extender, Data storage
Specification:
|
Compliant Standards |
IEEE 802.3ab |
|
Data Link Protocol |
Fast Ethernet |
|
Data Transfer Rate |
100 Mbps |
|
Dimensions (HxWxD) |
0.33 in x 0.53 in x 2.22 in |
|
Enclosure Type |
Plug-in module |
|
Product Description |
100BASE-LX - SFP transceiver |
|
Data Transfer Rate |
100Mbps |
|
Max Transfer Distance |
40km |
|
Cabling Type |
Fast Ethernet 100Base-LX |
|
Form Factor |
Plug-in module |
|
Device Type |
Network adapter |
|
Product Description |
Mini-GBIC 100BASE-LX - network adapter |
Environmental Parameters
|
Min Operating Temperature |
0 |
|
Max Operating Temperature |
+70 |
Order Information
|
Product Number |
Compatible H3C P/N |
Description |
|
1) SLS2850-H3 |
SFP-GE-SX-MM850-A |
1000Base-SX Dual LC, Multi-mode 850nm,550m SFP |
|
2) SLS2130-H3 |
SFP-GE-LX-SM1310-A |
1000Base-LX Dual LC, SMF 1310nm,10km SFP |
|
3) SLS2143-H3 |
SFP-GE-LH40-SM1310 |
1000Base-LX40 LC, Single-mode 1310nm,40km SFP |
|
4) SLS2145-H3 |
SFP-GE-LH40-SM1550 |
1000Base-LH LC, Single-mode 1550nm,40km SFP |
|
5) SLS2150-H3 |
SFP-GE-LH70-SM1550 |
1000Base-ZX LC, Single-mode 1550nm,70km SFP |
|
6) SLS2151-H3 |
SFP-GE-LH100-SM1550 |
1000Base-EZX LC, Single-mode 1550nm,100km SFP |
|
7)SLST00-H3 |
SFP-GE-T |
1000Base-T RJ45, 100m Category 5 |
|
8)SLS2210-H3 |
SFP-FE-SX-MM1310-A |
100FX 155Mbps LC 1310nm MMF 2km SFP |
|
9) SLS2220-H3 |
SFP-FE-LX-SM1310-A |
100LX 155Mbps LC 1310nm SMF 15km SFP |
|
10) SLS2230-H3 |
SFP-FE-LH40-SM1310-A |
100LX40 155Mbps LC 1310nm SMF 40km SFP |
|
11) SLS2240-H3 |
SFP-FE-LH80-SM1550 |
100LX80 155Mbps LC 1550nm SMF 80km SFP |
|
