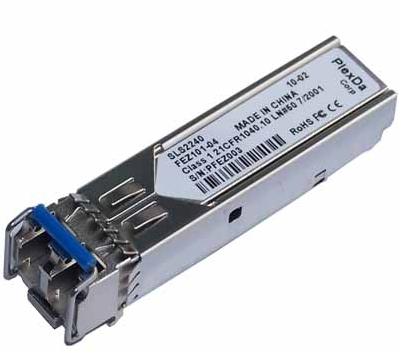

The Plexda SLS2240-H3 small form factor pluggable (SFP) transceiver modules are designed to install in any SFP port allowing for 100Base-T, 100Base-SX, 100Base-LX, 100Base-ZX or 100FX Fast Ethernet interfaces to the network through the SFP connector. The SLS2240-H3 transceivers are H3C compatible and are designed for bidirectional serial-optical data communication such as Gigabit Ethernet or fiber channel at speeds up to 155Mbps.
Plexda’ SFP modules fully comply with the Multi Sourcing Agreement (MSA). This compliance allows our SFP modules to be used in all other MSA compliant SFP platforms. In addition, SLS-xxxx-H3 modules are also compatible with all H3C SFP-based routers and switches, as well as H3C’s IOS software. SLS2240-H3 modules ARE NOT H3C OEM brand modules.
Feature:
Compliant with SFP MSA and SFF-8477 with LC receptacle
Compliant with IEEE802.3 100BASE-LX
Compliant with IEEE802.3ah100BASE-LX
Compliant with Intermediate-Reach ATM,SDH/SONET OC-3/SDH STM-1 (S-1.1)
Can be used on Optical Line Converter xFMFF4040-100
Operating date rate 155Mbps
Metal enclosure for lower EMI
+3.3V single power supply
Digital Diagnostic Function for option
80km reach with 9/125u single mode fiber (SMF)
Hot-Pluggable SFP Footprint LC Optical Transceiver
Class 1 Laser International Safety Standard IEC-60825 Compliant
Applications
100Base-LX Fast Ethernet Links
155Mb/s SDH/SONET OC-3/SDH STM-1 (S-1.1)
High speed I/O for file servers
Switch to Switch interface
Distributed multi-processing
Channel extender, Data storage
Specification:
Compliant Standards |
IEEE 802.3ab |
Data Link Protocol |
Fast Ethernet |
Data Transfer Rate |
100 Mbps |
Dimensions (HxWxD) |
0.33 in x 0.53 in x 2.22 in |
Enclosure Type |
Plug-in module |
Product Description |
100BASE-LX - SFP transceiver |
Data Transfer Rate |
100Mbps |
Max Transfer Distance |
80km |
Cabling Type |
Fast Ethernet 100Base-LX |
Form Factor |
Plug-in module |
Device Type |
Network adapter |
Product Description |
Mini-GBIC 100BASE-LX - network adapter |
Environmental Parameters
Min Operating Temperature |
0℃ |
Max Operating Temperature |
+70℃ |
Order Information
Product Number |
Compatible H3C P/N |
Description |
1) SLS2850-H3 |
SFP-GE-SX-MM850-A |
1000Base-SX Dual LC, Multi-mode 850nm,550m SFP |
2) SLS2130-H3 |
SFP-GE-LX-SM1310-A |
1000Base-LX Dual LC, SMF 1310nm,10km SFP |
3) SLS2143-H3 |
SFP-GE-LH40-SM1310 |
1000Base-LX40 LC, Single-mode 1310nm,40km SFP |
4) SLS2145-H3 |
SFP-GE-LH40-SM1550 |
1000Base-LH LC, Single-mode 1550nm,40km SFP |
5) SLS2150-H3 |
SFP-GE-LH70-SM1550 |
1000Base-ZX LC, Single-mode 1550nm,70km SFP |
6) SLS2151-H3 |
SFP-GE-LH100-SM1550 |
1000Base-EZX LC, Single-mode 1550nm,100km SFP |
7) SLST00-H3 |
SFP-GE-T |
1000Base-T RJ45, 100m Category 5 |
8) SLS2210-H3 |
SFP-FE-SX-MM1310-A |
100FX 155Mbps LC 1310nm MMF 2km SFP |
9) SLS2220-H3 |
SFP-FE-LX-SM1310-A |
100LX 155Mbps LC 1310nm SMF 15km SFP |
10) SLS2230-H3 |
SFP-FE-LH40-SM1310-A |
100LX40 155Mbps LC 1310nm SMF 40km SFP |
11) SLS2240-H3 |
SFP-FE-LH80-SM1550 |
100LX80 155Mbps LC 1550nm SMF 80km SFP |
|
