Product Features:
Support GE and 10GE applications
Up to 300m transmission distance at 10.3Gbps on 50μm MMF (2000MHz.km)
Up to 550m transmission distance at 1.25Gbps on 50μm MMF (500MHz.km)
850nm VCSEL and PIN receiver
SFI high speed electrical interface
2-wire interface with integrated Digital Diagnostic monitoring for optional
SFP+ MSA package with duplex LC connector
Single +3.3V power supply
Power consumption less than 1.0W
Operating case temperature: 0~+70°C
Compliance standard
|
Feature |
Standard |
Performance |
|
Electrostatic Discharge
(ESD) to the Electrical Pins |
MIL-STD-883E
Method 3015.7 |
Class 1(>1000V for SFI pins, >2000V for other pins.) |
|
Electrostatic Discharge (ESD) to the Duplex LC Receptacle |
IEC 61000-4-2
GR-1089-CORE |
Compatible with standards |
|
Electromagnetic
Interference (EMI) |
FCC Part 15 Class B
EN55022 Class B (CISPR 22B)
VCCI Class B |
Compatible with standards |
|
Immunity |
IEC 61000-4-3 |
Compatible with standards |
|
Laser Eye Safety |
FDA 21CFR 1040.10 and 1040.11
EN60950, EN (IEC) 60825-1,2 |
Compatible with Class I laser product. |
Specifications / Ordering Information:
|

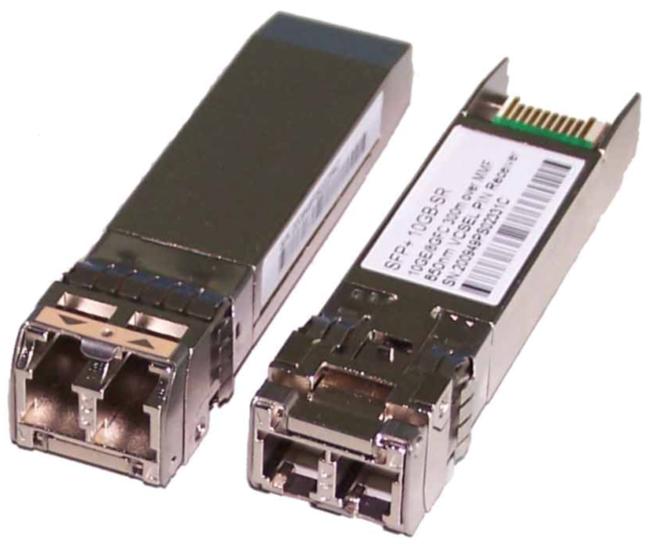

SFP-10GB-SR |
Package: SFP+
Date Rate: 10.3Gbps
Wavelength: 850nm
TX optic Power: -7.3~-1.5dBm
RX sensitivity: <-9.9dBm
Operate Temp: 0~70℃
VCSEL and PIN, 3.3V MMF LC
Reach: 300m |
|
SFP-10GB-LR |
Package: SFP+
Date Rate: 10.3Gbps
Wavelength: 1310nm
TX optic Power: -8~0.5dBm
RX sensitivity: <-12.6dBm
Operate Temp: 0~70℃
DFB and PIN, 3.3V SMF LC
Reach: 10km |
|
SFP-10GB-LR20 |
Package: SFP+
Date Rate: 10.3Gbps
Wavelength: 1310nm
TX optic Power: -3~+1.0dBm
RX sensitivity: <-14dBm
Operate Temp: 0~70℃
DFB and PIN, 3.3V SMF LC
Reach: 20km |
|
