Product Features:
Support GE and 10GE applications
Up to 10km transmission distance at 10.3Gbps on 9/125μm SMF (2000MHz.km)
1310nm DFB and PIN receiver
SFI high speed electrical interface
2-wire interface with integrated Digital Diagnostic monitoring for optional
SFP+ MSA package with duplex LC connector
Single +3.3V power supply
Power consumption less than 1.0W
Operating case temperature: 0~+70°C
Compliance standard
Feature |
Standard |
Performance |
Electrostatic Discharge
(ESD) to the Electrical Pins |
MIL-STD-883E
Method 3015.7 |
Class 1(>1000V for SFI pins, >2000V for other pins.) |
Electrostatic Discharge (ESD) to the Duplex LC Receptacle |
IEC 61000-4-2
GR-1089-CORE |
Compatible with standards |
Electromagnetic
Interference (EMI) |
FCC Part 15 Class B
EN55022 Class B (CISPR 22B)
VCCI Class B |
Compatible with standards |
Immunity |
IEC 61000-4-3 |
Compatible with standards |
Laser Eye Safety |
FDA 21CFR 1040.10 and 1040.11
EN60950, EN (IEC) 60825-1,2 |
Compatible with Class I laser product. |
Specifications / Ordering Information:

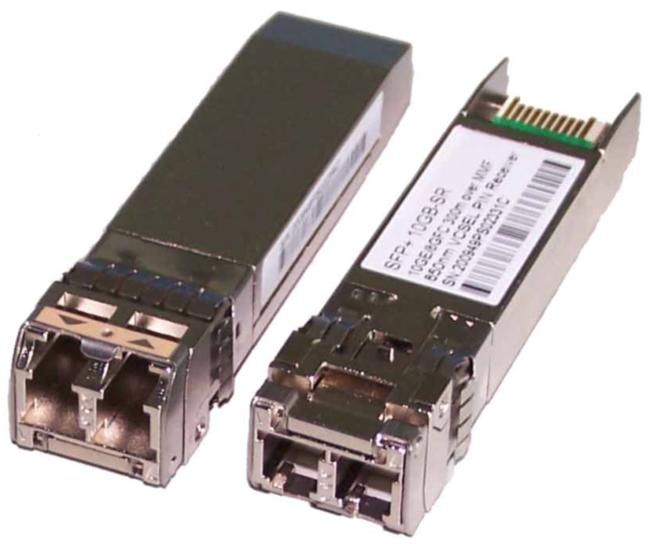

SFP-10GB-SR |
Package: SFP+
Date Rate: 10.3Gbps
Wavelength: 850nm
TX optic Power: -7.3~-1.5dBm
RX sensitivity: <-9.9dBm
Operate Temp: 0~70℃
VCSEL and PIN, 3.3V MMF LC
Reach: 300m |
SFP-10GB-LR |
Package: SFP+
Date Rate: 10.3Gbps
Wavelength: 1310nm
TX optic Power: -8~0.5dBm
RX sensitivity: <-12.6dBm
Operate Temp: 0~70℃
DFB and PIN, 3.3V SMF LC
Reach: 10km |
SFP-10GB-LR20 |
Package: SFP+
Date Rate: 10.3Gbps
Wavelength: 1310nm
TX optic Power: -3~+1.0dBm
RX sensitivity: <-14dBm
Operate Temp: 0~70℃
DFB and PIN, 3.3V SMF LC
Reach: 20km |
|
