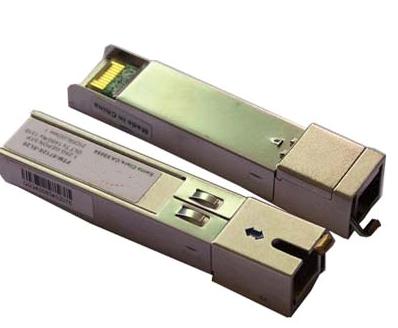

The SFP-OLT-XX is an optical OLT transceiver for IEEE802.3ah™ -2004 1000BASE-PX20 application. The transmit and receive functions are contained in a standard Small Form Plugable (SFP) package with a single fiber interface terminated with a standard SC or other optional connectors with high return loss. The transceiver is the high performance module for 1.25Gbps data rates.

The transceiver comprises a 1310nm Burst Mode optical receiver and a 1490nm Continuous Mode optical transmitter. The transmitter utilized a multiple quantum well 1490nm DFB laser is compliant with Class    laser safety standard IEC-60825. The receiver  uses  an  integrated  1310nm APD  and  preamplifier  mounted  in  an  optical header and limiting post-amplifier IC.

The transmitter incorporates an Automatic Laser Power Control circuit to maintain the optical power and extinction ratio over an ambient temperature of 0 to +70. Included in the module is a Transmit Disable input and a Transmitter Fault Indicator. The transmitter data inputs and receiver data outputs are LVPECL compatible.

Features:

Package compliant with SFP MSA

Compliant with IEEE Std 802.3ah™-2004

Single fiber bi-di data links with symmetric 1.25Gbps upstream and downstream

1490nm Continuous mode operation of transmitter

1310nm Burst mode operation of receiver

Integrated with micro-optics WDM

filter for dual wavelength Tx/Rx operation at 1490/1310nm

1490nm DFB laser for continuous mode transmitter

1310nm APD-TIA for burst mode receiver

Support more than 20dB dynamic range in system

SC or other optional connectors with high return loss

0 to +70 operating ambient range

Single 3.3V power supply

Class laser safety standard IEC-60825 compliant

Application

Gigabit Ethernet Passive

Optical Networks OLT side

Standard

Compliant With IEEE802.3ah™ -2004

Compliant with FCC 47 CFR Part 15, Class B

Compliant with FDA 21 CFR1040.10 and 1040.11, Class1

 Specification

Note 1: Launched into 9/125um SMF .

Note 2: Maximum sensitivity penalty due to transmitter and dispersion effect through 20km of SMF optical fiber.
