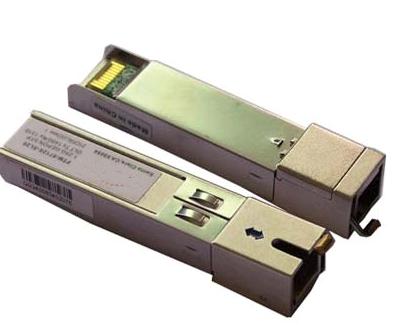

SFP-ONU-10 is a transceiver for the optical network unit (ONU) of GE-PON with 1.25Gbps in  downstream and 1.25Gbps in upstream. It’s high performance module for single fiber communications by using 1310 nm  burst-mode transmitter and 1490 nm continuous-mode receiver.

The transmitter section uses a multiple quantum well 1310 nm laser and is a class 1laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated 1490 nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.LVPECL interface is used for differential inputs and outputs. A LVTTL logic interface simplifies interface to external circuitry.

Features

SFP Package with SC

Single +3.3 V Power Supply

1.25 Gbps / 1310 nm Burst-Mode Transmitter

1.25 Gbps / 1490 nm Continuous-Mode Receiver with 2R Output

Distance up to 10km

Operating Case Temperature

Standard: 0~+70

Extended: -20 ~+85

Class 1 Laser International Safety Standard IEC-60825 Compliant

Compliant with IEEE 802.3ah

RoHS Compliant

Applications

Gigabit Ethernet PON ONU for P2MP application.

Broadband GE-PON System

Order Information
