The FMC-FES13 series TX to FX manageable fiber media converter is a Fast Ethernet media converter that translates transmission signals from a twisted-pair 10/100BASE-TX cable to 100BASE-FX fiber optic cable.It extends network data transmission distances beyond the 100 meters limitation distances of copper wire up to 2 kilometers by using Multimode fiber optic model or 120 kilometers by using Single Mode fiber optic model. The 10/100BaseTX-to-FX Media Converter is typically used to connect Fast Ethernet devices, such as 100Base-TX Hubs, at long distance. The 100BaseTX-to-FX Media Converter will connect servers or workstations located up to 120 kilometers from each other.

Features

Ÿ            Selectable optical link-loss alarm

Ÿ            Selectable four transmitting modes

Ÿ            Comply with IEEE 802.3µ 100BASE-FX/TX, IEEE802.3 10BASE-T, Standard

Ÿ            Comply with IEEE 802.1Q VLAN TAG, Spanning Tree standard

Ÿ            Supports 10/100M, full/half duplex auto-negotiation

Ÿ            Supports auto MDI/MDIX crossover

Ÿ            Supports transmission distance up to 120km

Ÿ            Supports over-sized packets up to 1600Bytes

Ÿ            Supports hot-swappable

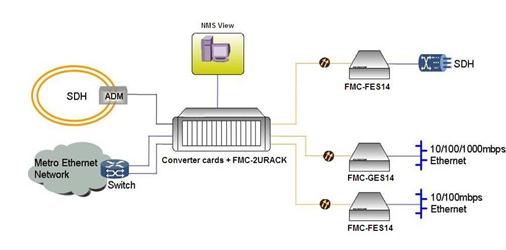

Application

Order Information
