The FMC-FEBD15-C25M 10/100BaseTX-to-FX Media Converter is typically used to connect Fast Ethernet

devices, such as 100Base-TX Hubs, at long distance. The 100BaseTX-to-FX Media Converter will connect

servers or workstations located up to 25 kilometers from each other. It with simple set-up and complete

function management interface, it support protocols like SNMP, WEB, TELNET, CONSOLE and offering MIB

 database for convenient to be merged to the party’s SNMP.

Features:

* Support 10Base-T, 100Base-TX, 100Base-FX

* Meet standards IEEE 802.3 10 Base-T, 802.3U,100Base-TX, 100Base-FX protocols

* With high performance auto-sensing exchanging chipset meeting industrial standard,

   secure  and steady data transmission is ensured with non-traffic jam exchanging performance.

* Chassis  supports both 10/100M media converters  and 10/100/1000M  media  converters

   and realizes mixing management of the two kinds of media converters

* The 10/100M media converter cards can realize Max.2046bytes packet at store-and-forward mode,

   Max. 9K bytes packet at cut-through mode

* Auto MDI/MDIX provides automatic cross

* Standalone chassis with internal special communication power supply, chassis support dual

   redundant power supply(support OLP function)

* Fiber media converter module, SFP module, cascading card and NMS card support hot plug.

* One RJ45 10/100Base-TX ports.

* Auto Half/Full Duplex data mode

* Auto Negotiate 10/100M

* Standalone style

Advantages

* Supporting remote and local management

* Supporting protocols like CONSOLE, WEB and SNMP

* The status of 10/100M media converters with IP113A/C/F/M chipsets can be monitored and

  queried at the same chassis system.

* Support  Bi-di SFP, CWDM SFP, DWDM SFP.

* Media converter card supports protocols like Q-in-Q Double Tag VLAN, IEEE802.1q Tag VLAN

  and IEEE802.3x Flow control

* Detailed information can be present working status.

*  local or remote devices can be tracked, including the connecting status, connecting speed,

    half/full duplex, port locked LFP.

* Supporting Link Loopback test.

* With SNMP protocol, Trap Destination and Community Name and related right can be set up

* Support Equipment remote-restart, system or module restart by management software.

* Reset to factory set up or dip switch status are optional

* Supporting online upgrading by FTP

* NMS supports network device auto-detect and auto-adding

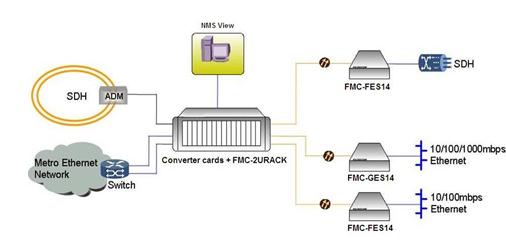

* With centralized management and Top tree, several chassis can be managed in the same

   interface at the same time; with grouping management any converter can be conveniently

  manipulated among many converters

Technical Parameters

  Ethernet Interface

1) Meet standards: IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah

2) Data rate: 10Mbps, 100Mbps half/full duplex auto-sensing

3) Connector: RJ-45

4) UTP CAT, 5 or CAT5E connecting with RJ-45, transmission distance at 100m



Fiber port

1) Connector: SC, LC

2) Operating wavelength:  TX 1550nm at single mode.

                                                    RX 1310nm at single mode

Basic Working environment

Operating Temp: 0~50℃ Storage Temp: -10~70℃
