FMC-GEBD(C) Series Copper to Fiber Media Converter Single fiber converter adopt WDM technique, so transmitting and receiving on one same roof of fiber and save fiber consumption can be wide use on limited fiber resource, rent other people’s fiber optic or two cores fibers to have one breakdown of an emergence situation .It is excellent product for broadband long distance transmit.
The Converter is equipped with two fiber optic connectors (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jacks and one external power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation. It is compact, cost-effective, low dissipative, high reliable and stable. It is used in 2U Rack mount chassis applications.
Features:
1). Support the IEEE802.3 fast Ethernet standard (10Mbps)
2). Support the IEEE802.3u Fast Ethernet standard(100Mbps)
3). Support the IEEE802.3ab,IEEE802.3z Gigabit Ethernet standard (1000Mbps)
4). Support the IEEE802.3x full-duplexes flow control
5). Support the IEEE802.1d spanning tree protocol
6). Support the IEEE802.1Q VLAN remark protocol
7). Full-duplexes, half-duplex auto negotiation
8). 10M/100M/1000M bit rate auto negotiation
9). Ext. Power or Int. Power for option, AC and DC input for option
10). Half duplex: back pressure flow control
Full duplex: IEEE802.3x flow control
11). Automatic identification of MDI/MDI-X cross line.
12). Max.2046bytes packet at store-and-forward mode, Max.9K bytes packet at cut-through mode
13). low power consumption, low heat, standalone type with 2.5W special communication power supply
14). Support LFP function.
15). In conformity to safety code of FCC and 15 CLASS A and CE MARK.
16) With high performance auto-sensing exchanging chipset meeting industrial standard,
secure and steady data transmission is ensured with non-traffic jam exchanging performance.
17) Auto MDI/MDIX provides automatic cross
18) Support SFP, CWDM SFP, DWDM SFP.
19) Media converter card supports protocols like Q-in-Q Double Tag VLAN, IEEE802.1q Tag VLAN and
IEEE802.3x Flow control
Technical Parameters
Ethernet Interface
1) Meet standards: IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah
2) Data rate: 10Mbps, 100Mbps half/full duplex auto-sensing
3) Connector: RJ-45
4) UTP CAT5 or CAT5E connecting with RJ-45, transmission distance at 100m
Fiber port
1) Connector: LC, SC,
2) Operating wavelength: TX:1310nm / RX 1550nm at single mode
Operating Temp: 0~50℃ Storage Temp: -10~70℃
Humidity: 5%~90% (non-condensing)
Dimension(standalone): 116mm*89mm
Power supply: +5VDC

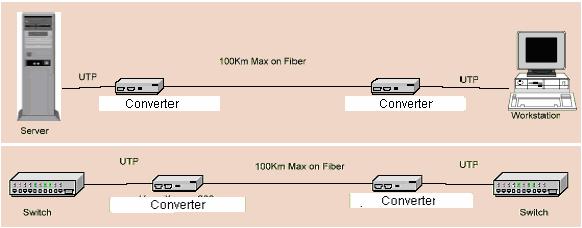

APPLICATION:
Order Information
Part Number |
Package |
Description |
FMC-GEBD13-C10 |
2U Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,10km,SC LFP |
FMC-GEBD15-C10 |
2U Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,10km,SC LFP |
FMC-GEBD13-C10M |
2U Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,10km,SC LFP,SNMP |
FMC-GEBD15-C10M |
2U Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,10km,SC LFP,SNMP |
FMC-GEBD13-C25 |
2U Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,25km,SC LFP |
FMC-GEBD15-C25 |
2U Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,25km,SC LFP |
FMC-GEBD13-C25M |
2U Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,25km,SC LFP,SNMP |
FMC-GEBD15-C25M |
2U Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,25km,SC LFP,SNMP |
FMC-GEBD13-C40 |
2U Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,40km,SC LFP |
FMC-GEBD15-C40 |
2U Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,40km,SC LFP |
FMC-GEBD13-C40M |
2U Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,40km,SC LFP,SNMP |
FMC-GEBD15-C40M |
2U Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,40km,SC LFP,SNMP |
FMC-GEBD13-C60 |
2U Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,60km,SC LFP |
FMC-GEBD15-C60 |
2U Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,60km,SC LFP |
FMC-GEBD13-C60M |
2U Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,60km,SC LFP,SNMP |
FMC-GEBD15-C60M |
2U Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,60km,SC LFP,SNMP |
FMC-GEBD13-S10 |
STD Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,10km,SC LFP,96~230VAC |
FMC-GEBD15-S10 |
STD Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,10km,SC LFP,96~230VAC |
FMC-GEBD13-S10M |
STD Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,10km,SC LFP,96~230VAC,SNMP |
FMC-GEBD15-S10M |
STD Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,10km,SC LFP,96~230VAC,SNMP |
FMC-GEBD13-S25 |
STD Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,25km,SC LFP,96~230VAC |
FMC-GEBD15-S25 |
STD Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,25km,SC LFP,96~230VAC |
FMC-GEBD13-S25M |
STD Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,25km,SC LFP,96~230VAC,SNMP |
FMC-GEBD15-S25M |
STD Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,25km,SC LFP,96~230VAC,SNMP |
FMC-GEBD13-S40 |
STD Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,40km,SC LFP,96~230VAC |
FMC-GEBD15-S40 |
STD Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,40km,SC LFP,96~230VAC |
FMC-GEBD13-S40M |
STD Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,40km,SC LFP,96~230VAC,SNMP |
FMC-GEBD15-S40M |
STD Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,40km,SC LFP,96~230VAC,SNMP |
FMC-GEBD13-S60 |
STD Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,60km,SC LFP,96~230VAC |
FMC-GEBD15-S60 |
STD Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,60km,SC LFP,96~230VAC |
FMC-GEBD13-S60M |
STD Bidi |
10/100/1000Mbps,SMF1310nmTX/1550nmRX,60km,SC LFP,96~230VAC,SNMP |
FMC-GEBD15-S60M |
STD Bidi |
10/100/1000Mbps,SMF1550nmTX/1310nmRX,60km,SC LFP,96~230VAC,SNMP | |
