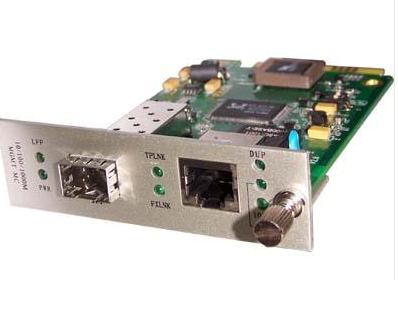

FMC-GEBD(C) Series Copper to Fiber Media Converter Single fiber converter adopt WDM technique, so transmitting and receiving on one same roof of fiber and save fiber consumption can be wide use on limited fiber resource, rent other people’s fiber optic or two cores fibers to have one breakdown of an emergence situation .It is excellent product for broadband long distance transmit.

The Converter is equipped with two fiber optic connectors (One for transmitting-TX and another for receiving-RX) and one RJ-45 Jacks and one external power supply receptacle. Six LED indicators are built-in for easy diagnosing and monitoring the status of power, Unshielded Twisted Paired (UTP) Link, UTP Activity, Fiber Link, Fiber Activity, Full duplex and data rates. It can be configured automatically for Full Duplex or Half Duplex operation. It is compact, cost-effective, low dissipative, high reliable and stable. It is used in 2U Rack mount chassis applications.

Features:

1). Support the IEEE802.3 fast Ethernet standard (10Mbps)

2). Support the IEEE802.3u Fast Ethernet standard(100Mbps)

3). Support the IEEE802.3ab,IEEE802.3z Gigabit Ethernet standard (1000Mbps)

4). Support the IEEE802.3x full-duplexes flow control

5). Support the IEEE802.1d spanning tree protocol

6). Support the IEEE802.1Q VLAN remark protocol

7). Full-duplexes, half-duplex auto negotiation

8). 10M/100M/1000M bit rate auto negotiation

9). Ext. Power or Int. Power for option, AC and DC input for option

10). Half duplex: back pressure flow control

Full duplex: IEEE802.3x flow control

11). Automatic identification of MDI/MDI-X cross line.

12). Max.2046bytes packet at store-and-forward mode, Max.9K bytes packet at cut-through mode

13). low power consumption, low heat, standalone type with 2.5W special communication power supply

14). Support LFP function.

15). In conformity to safety code of FCC and 15 CLASS A and CE MARK.

16) With high performance auto-sensing exchanging chipset meeting industrial standard,

secure and steady data transmission is ensured with non-traffic jam exchanging performance.

17) Auto MDI/MDIX provides automatic cross

18) Support SFP, CWDM SFP, DWDM SFP.

19) Media converter card supports protocols like Q-in-Q Double Tag VLAN, IEEE802.1q Tag VLAN and

        IEEE802.3x Flow control

Technical Parameters

Ethernet Interface

1) Meet standards: IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah

2) Data rate: 10Mbps, 100Mbps half/full duplex auto-sensing

3) Connector: RJ-45

4) UTP CAT5 or CAT5E connecting with RJ-45, transmission distance at 100m



Fiber port

1) Connector: LC, SC,

2) Operating wavelength: TX:1550nm / RX 1310nm at single mode
