Applications
1.25Gb/s 1000Base-LX Ethernet Links
1x or 2x Fiber Channel
High speed I/O for file servers
Switch to Switch interface
Distributed multi-processing
Channel extender, Data storage
Product Features
Compliant with specifications for SFP MSA standard
Compliant with specifications for IEEE-802.3z Gigabit Ethernet Standard
Compliant with specifications for SDH/SONET/ATM standard
Duplex LC Connector
Built-in digital diagnostic functions
1310nm FP laser transmitter
Differential LVPECL inputs and outputs
Compliant with ANSI specifications for Fiber Channel applications at 1.0625Gbps
TTL signal detect indicator
Up to 2.125Gb/s bi-directional data links, NRZ
Single Power Supply 3.3V
Hot-Pluggable SFP footprint
Distance up to 10km on 9/125μm SMF
Metal enclosure for lower EMI
Extended operation temperature range: 0℃ to 70℃
Order Information
|
Part Number |
Compatible Finisar P/N |
Description |
|
SLS8519(D)-FNS |
FTRJ8519P1BNL |
2Gbps LC MMF 850nm VSCEL, 550m DDM option |
|
SLS1319(D)-FNS |
FTRJ1319P1BTL |
2Gbps LC SMF 1310nm FP/PIN, 10km DDM option |
|
SLS1519(D)-FNS |
FTRJ1519P1BCL |
2Gbps LC SMF 1550nm DFB/PIN, 70km DDM option |
|
SLS1621(D)-FNS |
FTRJ1621P1BCL |
2Gbps LC SMF 1550nm DFB/APD, 100km DDM option |
|

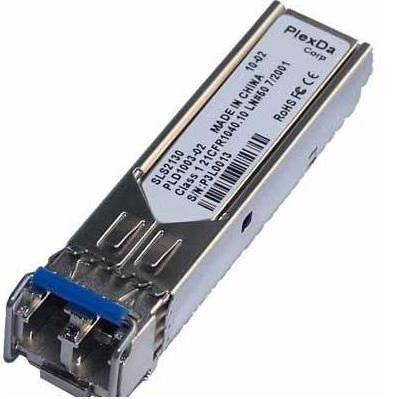

SFP Module
