1 Channel Digital Video Optical Transmitter & Receiver
With Stereo Audio, Data Channel and Ethernet for Optional

Rock Card and Standalone Type for Optional

Overview:

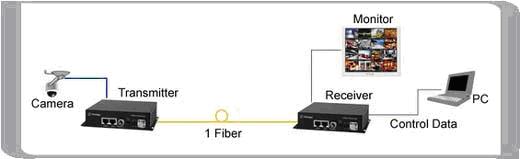

The Product provides customer with the most cost-effective solution for transmission of 1 channel uncompressed digital video, 1 reversed/ Bi-di stereo audio and 1 RS232/RS422/RS485 data over one single fiber cable. It is an easy installation and adjustment free device while providing high quality, real-time video.

Applications

CCTV, video surveillance, homeland security, ITS and etc

Features:

• Transports 1 channel digitized, high quality, uncompressed video
• 8MHz video bandwidth, Automatically Compatible with NTSC, PAL and SECAM
• Provides 1 reversed stereo audio and 1 reversed data transmission over same optical fiber
• Easy installation and adjustment free
• Transmission range up to 120KM depending on model
• RS232, RS422/RS485 compatible data interfaces
• Stand alone operation or mount in chassis

Specification:

• Power:
  220VAC/50Hz, standalone device
  0.2A@12VDC for rack card
• Indicators:
  Power, Link Status, Video Signal
  Audio status, Data traffic

• Video:
  Format: PAL/NTSC/SECAM
  Video Signal: 1Vp-p, 75ohm
  Digitization: 8bits/10bits
  Bandwidth: 8MHz
  DG <1%
  DP <1 degree
  SNR >60dB(weighted)
  Connectors: 1 BNCs
• Physical Dimensions:

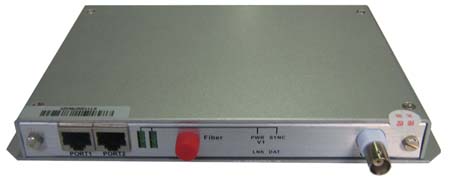

  176X220X25.4(mm) Card
  130 x 122 x 36(mm) Standalone

• Audio
  Channel: 1 stereo audio
  Audio Input: unbalanced, 600Ohms
  Digitization: 16bit@48k
  Frequency: 10Hz to 20KHz
  SNR: >70dB
  Connector: RJ45 or RCA
• Data:
  Channel: 1, Reversed
  Data Rate: 0~~23.04Kbps/channel
  Selectable RS-232/RS-422/RS-485
  Connector: RJ45 or Terminal Block with Screw Clamps
