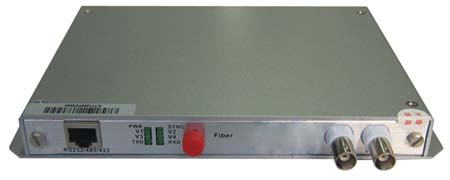

2 Channel Digital Video Optical Transmitter & Receiver
With Stereo Audio, Data Channel, 4E1/G703 and 100M Ethernet for Optional

Rack Card and Standalone Type for Optional

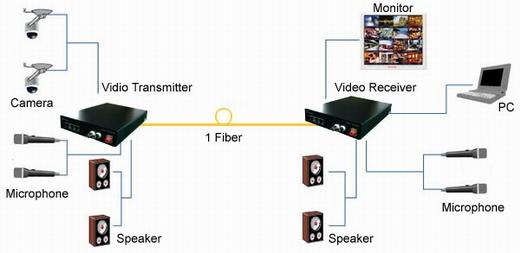

The Product is a fiber optic digital multiplexer for transmitting 2 channels of high quality, uncompressed digital video, 1~2 channels of bi-directional data and audio and one 100M Ethernet over a single fiber cable. Applications for this product include CCTV, video surveillance, homeland security, ITS and etc.

Applications

CCTV, video surveillance, homeland security, ITS and etc

Features:

• Transports 1~2 channels of High quality video over one optical fiber cable
• Exceeds RS250C Medium Haul Specification for DG, DP and SNR.
• 8MHz video bandwidth, Compatible with NTSC, PAL and SECAM
• Uncompressed video, 8 Bit or 10Bit digital encoding/decoding
• Transmission of 2 bi-directional audio
• Provides 2 channels of bi-dir data compatible with RS232, RS422/RS485
• One 10M/100M Ethernet compatible with IEEE802.3
• Easy installation and adjustment free
• Transmission up to 60KM over one fiber
• Stand alone operation or mount in Model FB-CHS(FC-712-6) chassis

Specification:

• Power:
  220VAC/50Hz, standalone device
  0.5A@12VDC for 1 slot rack card
• Indicators:
  Power, Optical Link Status
  Video Signal, Audio status, Data traffic
  E1 Alarm, Ethernet Link Status
• Video:
  Format: PAL/NTSC/SECAM
  Video Signal: 1Vp-p, 75ohm
  Digitization: 8bits/10bits
  Bandwidth: 8MHz
  DG <1%
  DP <1degree
  SNR >65dB
  Connectors: 2 BNCs
• Audio:
  Channel: 1~2, Bi-dir
  Audio Input: unbalanced, 600Ohms
  Digitization: 16bit@48k
  Frequency: 10Hz to 20KHz
  SNR: >70dB
  Connector: RJ45
• Data:
  Channel: 1~2, Bi-dir
  Data Rate: 0~~23.04Kbps/channel
  Format: RS-232/RS-422/RS-485
  Connector: RJ45
• Ethernet:
  Data Rate: 10/100Mbps auto detect
  Standard: IEEE802.3
  Connector: RJ45
  Auto-negotiation with half/full duplex
• Physical Dimensions:
  176mmX220mmX25.4mm, card
  162mmX237mmX36mm, standalone

• Environment:
  Operating: -40oC~+70 oC
  Storage: -40oC~+85 oC
  Humidity: 0-95% Non-Condensing
