8 Channel Digital Video Optical Transmitter & Receiver
With Stereo Audio, Data Channel and 100M Ethernet for Optional

Rack Card and Standalone Type for Optional

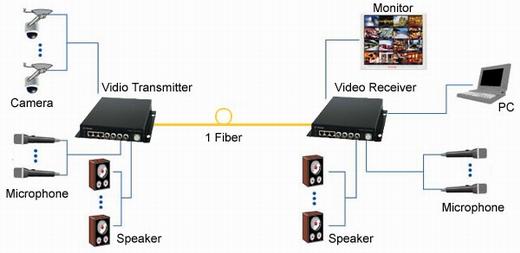

The Product is a fiber optic digital multiplexer for transmitting 8 channel high

quality,uncompressed digital video, 4 channels of bi-directional data and audio and one 100M Ethernet over a single fiber cable.

Applications

CCTV, video surveillance, homeland security, ITS and etc

Features:

• Transports 8 channels of High quality video over one optical fiber cable
• Exceeds RS250C Medium Haul Specification for DG, DP and SNR.
• 8MHz video bandwidth, Compatible with NTSC, PAL and SECAM
• Uncompressed video, 8 Bit or 10Bit digital encoding/decoding
• Transmission of 4 channels of any directional audio
• Provides 4 channels of bi-dir data compatible with RS232, RS422/RS485
• One 10M/100M Ethernet compatible with IEEE802.3
• Easy installation and adjustment free
• Transmission up to 60KM over one fiber
• Stand alone operation or mount in Model FB-CHS(FC-712-6) chassis

Specification:

• Power:
  220VAC/50Hz, standalone device
  0.6A@12VDC for card
• Indicators:
  Power, Optical Link Status
  Video Signal, Audio status, Data traffic
  E1 Alarm, Ethernet Link Status
• Video:
  Format: PAL/NTSC/SECAM
  Video Signal: 1Vp-p, 75ohm
  Digitization: 8bits/10bits
  Bandwidth: 8MHz
  DG <1%
  DP <1 degree
  SNR >65dB
  Connectors: 8 BNCs
• Audio
  Channel: 1~4, Bi-dir
  Audio Input: unbalanced, 600Ohms
  Digitization: 16bit@48k
  Frequency: 10Hz to 20KHz
  SNR: >70dB
  Connector: RJ45

• Data:
  Channel: 1~4, Bi-dir
  Data Rate: 0~~23.04Kbps/Ch
  Format: RS-232/RS-422/RS-485
  Connector: RJ45
• Ethernet:
  Data Rate: 10/100Mbps auto detect
  Standard: IEEE802.3
  Connector: RJ45
  Auto-negotiation with half/full duplex
• Environment:
  Operating: -40oC~+70 oC
  Storage: -40oC~+85 oC
  Humidity: 0-95% Non-Condensing
• Physical Dimension:
  176 x 220 x 50.8 (mm) card
  180 x 237 x 55(mm) Standalone
